SKU: YEA-MVC940-C5-008 888VoIP is a Yealink Platinum Distributor in 2025!

Yealink MVC940-C5-008 – 1106982

Login to view prices

MSRP: $6,899.00

Yealink MVC940-C5-008 Teams Rooms system for X-large rooms and Training Rooms

SKU: YEA-MVC940-C5-008 888VoIP is a Yealink Platinum Distributor in 2025!

You may also like…

Description

Yealink MVC940-C5-008 is specially designed for extra-large conference rooms and training rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC84, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink’s exclusive multi-camera solution, which can support up to 9 cameras connected at the same time and realize multi-speaker tracking with voice incentive mechanism Functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms. The MVC940 set comes standard with two UVC84 cameras, which can support 12x optical zoom-in and intelligent follow-up shooting. On the MTouch Plus control panel, through Yealink RoomConnect, the cameras can be controlled independently and switch layouts. You can combine the MVC940 with the MVC BYOD-Extender, you only need to plug the USB cable into the PC to freely use the audio and video equipment of the entire system, and you can convert the Microsoft Teams meeting room into a multi-functional meeting room. In addition, multiple sets of MVC940 series products can be combined through a network cable to build a conference room system that can be flexibly merged and divided.

Core Features:

  • Multiple Cameras
  • Camera Layout Adjustment
  • Wireless BYOD
  • Device Management
  • Multi-Screen
  • Divisible Conference Room
  • Third-Party DSP

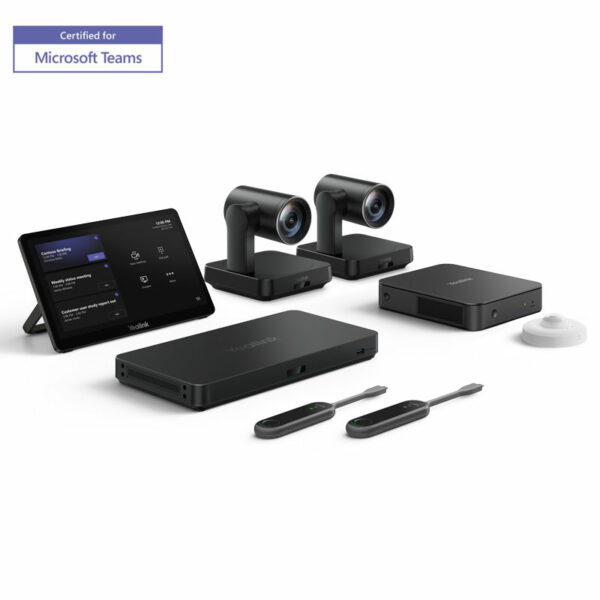

  • Package Contents:
    • 2x UVC84
    • MCoreKit-C5
      • MCore Pro mini-PC
      • MTouch Plus
      • RoomSensor
    • 1x AVHub
    • 2x WPP30
  • No audio devices



Additional information

Weight 33.11 lbs
Dimensions 22.44 × 15.94 × 20.08 in
Brand

Yealink
Video Room Size

Extra Large
Video Conferencing

BYOD, Collaboration Bars, Microsoft Teams

GENERAL INFO:

  • Model: MVC940-C5-008
  • Part number: 1106982
  • Box Contents:
    • 2x UVC84 12X PTZ camera, VCR20 remote control, power adapter，wallmount bracket and cables;
    • Yealink MCoreKit-C5
      • MCore Pro mini-PC
      • MTouch Plus
      • RoomSensor
      • Power adapter, cables and wall bracket
    • 1x AVHub multi-camera processor, power adapter and cables.
    • 2x WPP30 for wireless content sharing.
    • The mini-PC computer preloads Windows 10 IoT Enterprise OS and license
      • Microsoft Teams Rooms App
      • Yealink Camera Control Plug-in
    • No audio devices
    • Including 2-year hardware warranty

PRELOAD:

  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business onpremise/online and Teams meetings
  • Yeallink RoomConnect
    *Windows 11 will be supported in 23H2

MCORE PRO GEN-3:

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

MTOUCH PLUS:

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Adjustable stand (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support wireless BYOD*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
    *This feature will be supported in future versions

UVC84 USB PTZ CAMERA:

  • 4K Sensor
  • 12x optical zoom
  • Field of view (diagonal): 80°
  • Auto Framing
  • Camera presets
  • Pan range: 200°
  • Tilt range: 130°
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

ROOMSENSOR:

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

For a full list of specifications, please refer to the product datasheet
