Yealink MVC840-C5-000 – 1106985

Login to view prices

MSRP: $3,499.00

Yealink MVC840-C5-000 Microsoft Teams Rooms System for Medium and Large Meeting Rooms

SKU: YEA-MVC840-C5-000 888VoIP is a Yealink Platinum Distributor in 2025!

You may also like…

Description

Yealink MVC840-C5-000 is specially designed for medium and large conference rooms. MVC840 includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, and high-performance 4K PTZ camera UVC84.Yealink third generation MINI-PC MCore Pro combines aesthetics with practicality, supports a 5k 21:9 display, has three HDMI ports, and comes with EDID, providing a flexible and reliable deployment solution for conference rooms. The 11.6-inch ultra large and narrow frame touch panel MTouch Plus is the signature product of the third generation of Yealink. MTouch Plus innovatively supports multiple panels to control meetings at the same time*, allowing multiple people to synchronize meeting operations and fully control the meeting process. Support for third-party screen sharing* and wireless BYOD*. Equipped with Yealink conference room sensor RoomSensor, realize stable wake-up experience and conference room environment detection*.

Core Features:

  • One Cable Technology
  • 3-Microphone Array
  • Yealink Camera Control Plug-in
  • Auto Framing
  • Wireless Content Sharing
  • Device Management

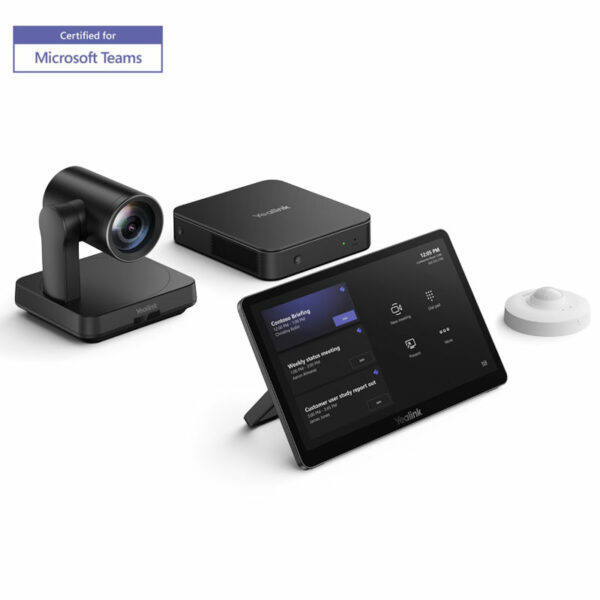

  • Box Contents:
    • MCore Pro, Gen-3 Mini-PC
    • MTouch Plus, Gen-3 Touch Panel
    • UVC84 USB PTZ Camera
    • RoomSensor, Meeting Room Sensor

Additional information

Weight 14.33 lbs
Dimensions 24.02 × 16.06 × 11.34 in
Brand

Yealink
Video Conferencing

BYOD, Collaboration Bars, Microsoft Teams
Video Room Size

Large, Medium

GENERAL INFO:

  • Model: MVC840-C5-000
  • Part number: 1106985
  • Box Contents:
    • MCore Pro, Gen-3 Mini-PC
    • MTouch Plus, Gen-3 Touch Panel
    • UVC84 USB PTZ Camera
    • RoomSensor, Meeting Room Sensor

PRELOAD:

  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business onpremise/online and Teams meetings
  • Yeallink RoomConnect
    *Windows 11 will be supported in 23H2

MCORE PRO GEN-3:

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

MTOUCH PLUS:

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Adjustable stand (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support wireless BYOD*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
    *This feature will be supported in future versions

UVC84 USB PTZ CAMERA:

  • 4K Sensor
  • 12x optical zoom
  • Field of view (diagonal): 80°
  • Auto Framing
  • Camera presets
  • Pan range: 200°
  • Tilt range: 130°
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

ROOMSENSOR:

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

For a full list of specifications, please refer to the product datasheet
