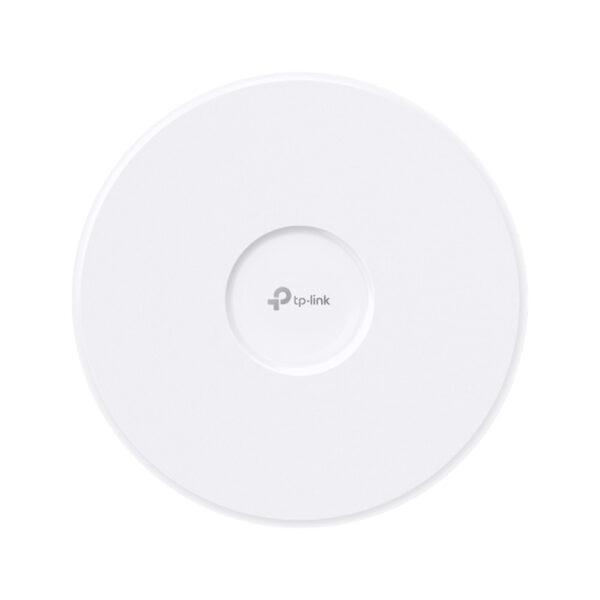

TP-Link EAP773 - Image 1

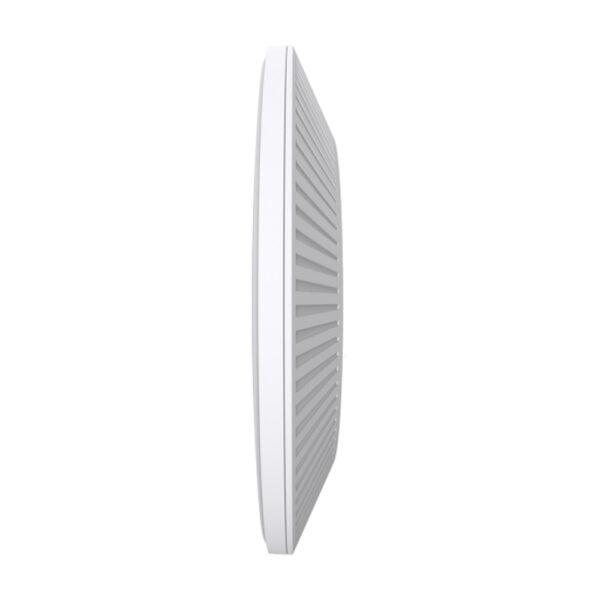

TP-Link EAP773 - Image 2

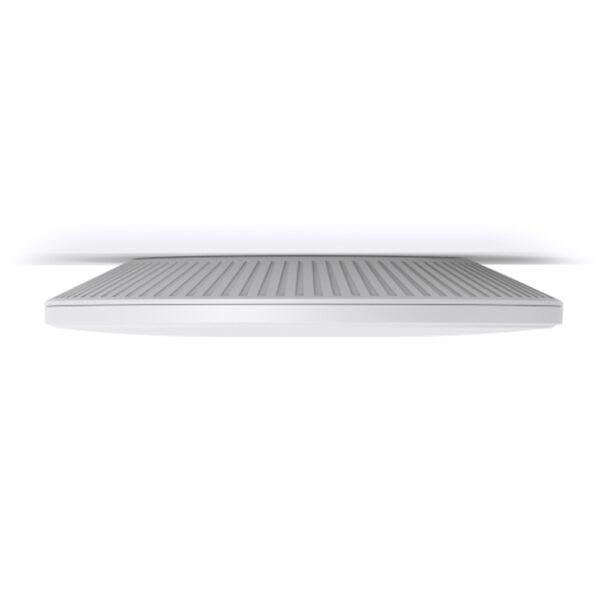

TP-Link EAP773 - Image 3

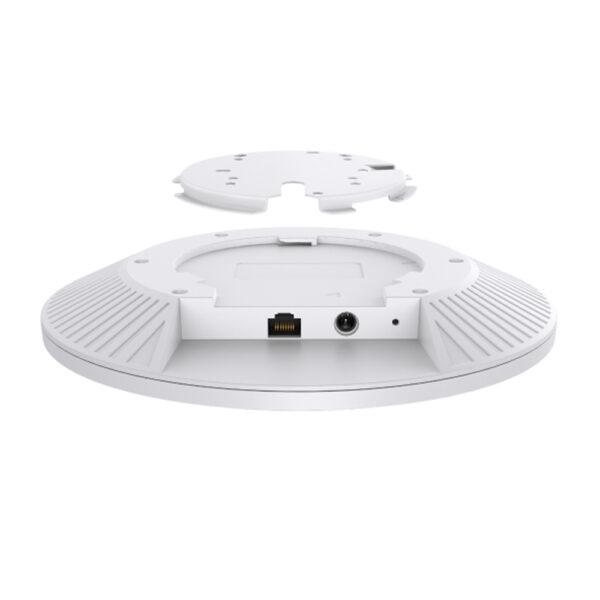

TP-Link EAP773 - Image 4
SKU: TPL-EAP773

TP-Link EAP773

Login to view prices

MSRP: $189.99

TP-Link EAP773 Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

SKU: TPL-EAP773

You may also like…

Description

TP-Link EAP773 Omada BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Core Features:

  • BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz)
    + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
  • 1× 10G Port: Unlock the full potential of Wi-Fi 7.
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more
    simultaneous transmissions at the fastest possible speeds.
  • Low Latency and Interference: Multi-Link Operation, and
    Multi-RUs ensure high performance of your network.
  • Advanced Functions: Supports centralized management,
    mesh, and AI roaming.

Additional information

Weight 3 lbs
Dimensions 3.60 × 11.00 × 10.30 in
Brand

TP-Link
Frequency Band

2.4 Ghz, 5 Ghz, 6 Ghz
Mounting Options/Type

Ceiling
Network Band

Dual Band, Tri-Band
Product Family

Omada Cloud Management
Wi-Fi Standard

Wi-Fi 7 (802.11be)
HARDWARE FEATURES
Interface 1× 10G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/2.5A DC

Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
Power Consumption • 25.44 W (For PoE)
• 22.57 W (For DC)
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)§
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†
Wireless Functions • MLO‡
• 4K-QAM‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO (2*2 DL/UL MU-MIMO)‡
• HE320‡
• Mesh△
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
