SKU: TPL-TL-SF1005P

TP-Link TL-SF1005P

Login to view prices

MSRP: $39.99

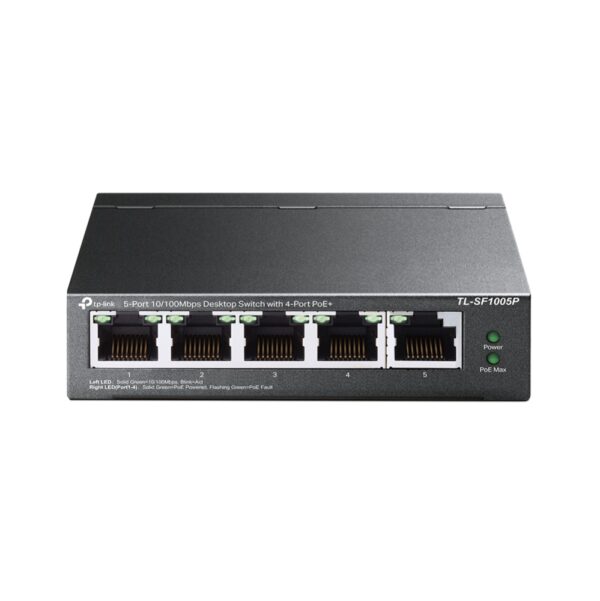

TP-Link TL-SF1005P, 5-Port Fast Ethernet PoE Switch – Limited Lifetime Protection

SKU: TPL-TL-SF1005P

You may also like…

Description

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Core Features:

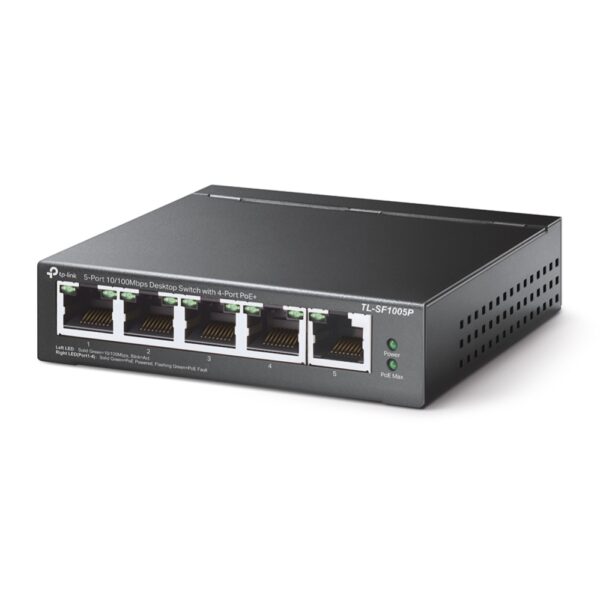

  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs

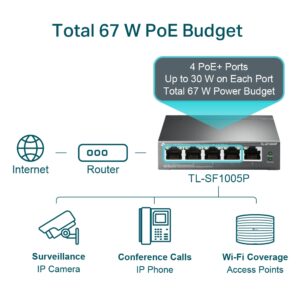

  • Supports PoE Power up to 30 W for each PoE port

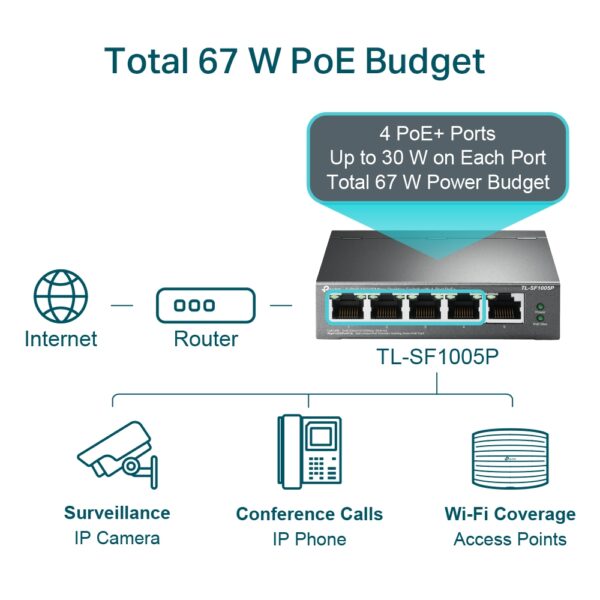

  • Supports PoE Power up to 67 W for all PoE ports*

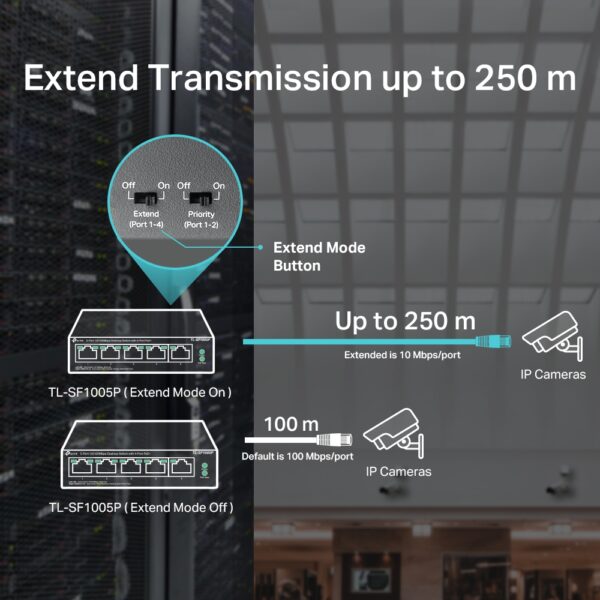

  • Up to 250m data and power transmitting range under Extend Mode**

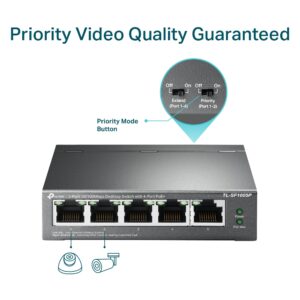

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

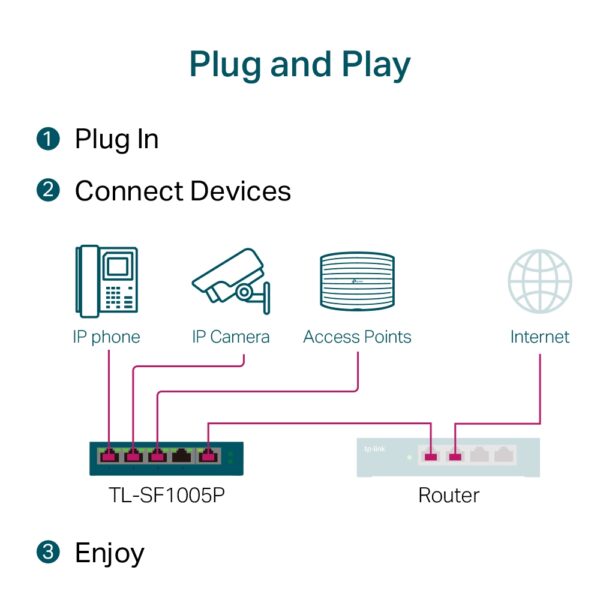

  • Plug and play with no configuration required

Additional information

Weight 1.61 lbs
Dimensions 7.72 × 5.16 × 5.16 in
Brand

TP-Link
Switch Type

Unmanaged Switches
Number of Ports

5-10
Main Port Speed

Fast Ethernet
Uplink Ports

Fast Ethernet RJ45
Layer Support

L2
PoE Support

Yes
PoE Budget

Low (30-70 W)
Redundant Power Supply

No
HARDWARE FEATURES
Interface 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes

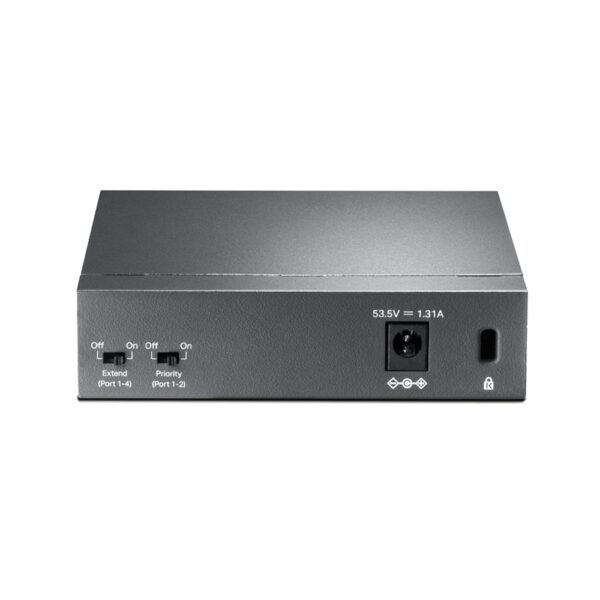

External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in
(100 x 98 x 25 mm)
Max Power Consumption 1.9 W (no PD connected)
74 W (with 67 W PD connected)
Max Heat Dissipation 6.5 BTU/h(no PD connected)
252.3 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1005P, Power Adapter, Installation Guide
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
