Description
Description

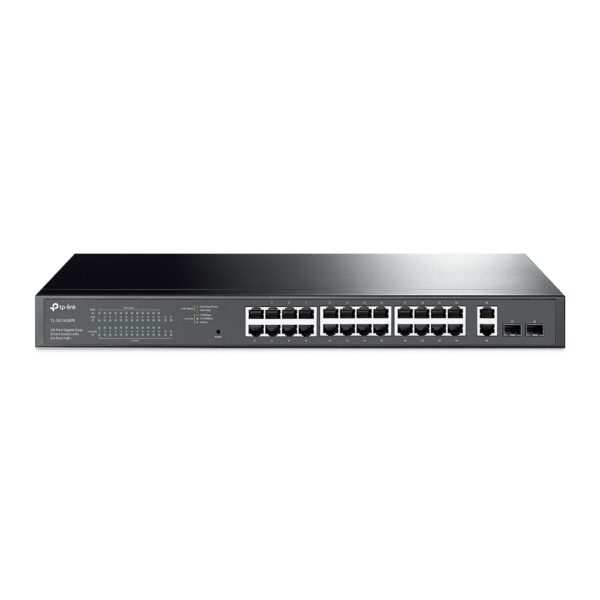

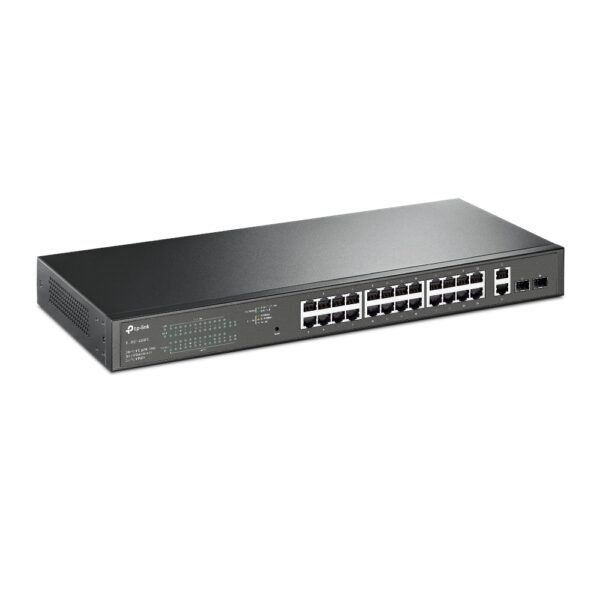

TP-Link TL-SG1428PE, 28 Ports – Manageable – 2 Layer Supported – Modular – 2 SFP Slots – 27 W Power Consumption – 250 W PoE Budget – Optical Fiber, Twisted Pair – PoE Ports – 1U High – Rack-mountable, Desktop.
Core Features:

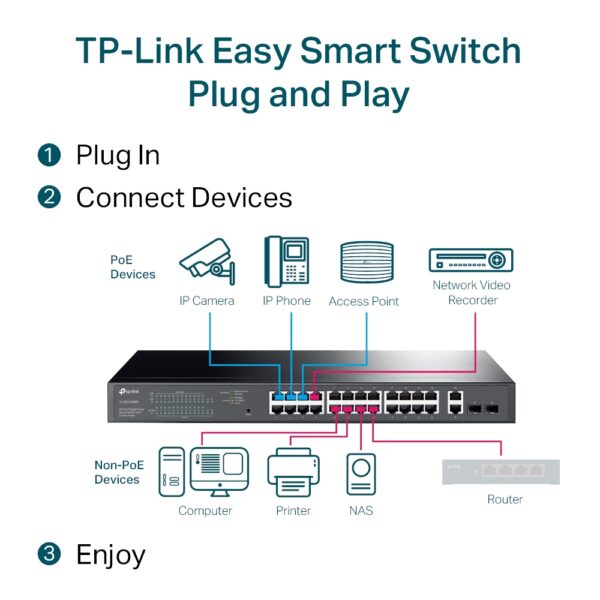

- 24 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports

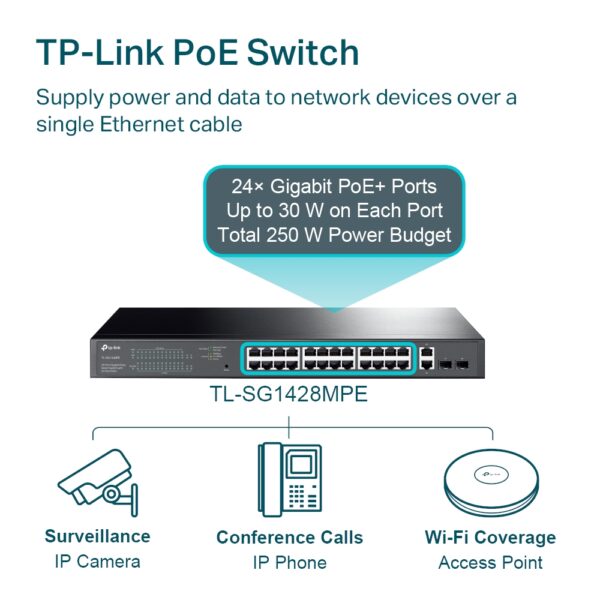

- PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
Additional information
Additional information
Weight | 8.22 lbs |
---|---|
Dimensions | 20.79 × 13.23 × 3.94 in |
Brand | TP-Link |
Switch Type | Easy Smart Switches |
Number of Ports | 24-28 |
Main Port Speed | Gigabit |
Uplink Ports | Gigabit SFP |
Layer Support | L2+ |
PoE Support | Yes |
PoE Budget | High (≥200) |
Redundant Power Supply | No |
Technical Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface | 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |

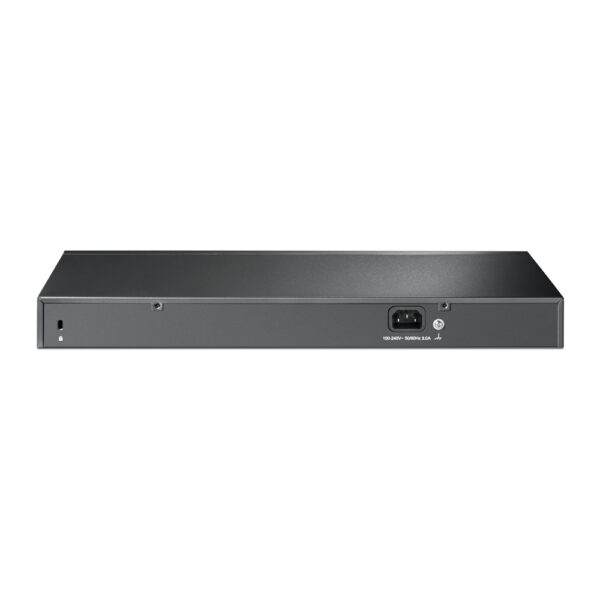

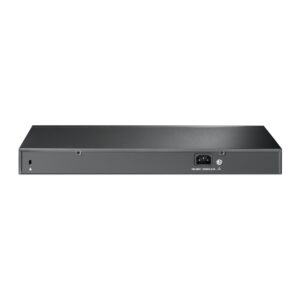

Power Supply | 100-240V AC, 50/60 Hz |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W |
Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
Mounting | 19″ 1U rack mountable |
Max Power Consumption | 27 W (no power device connected) 304.7 W (with 250W power device connected) |
Max Heat Dissipation | 92.1 BTU/h (no PD connected) 1,039.0 BTU/h (with 250 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 41.7 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management | Web-Based GUI Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
Environment | Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
