- Description
- Additional information
- Technical Specifications
Description
Description

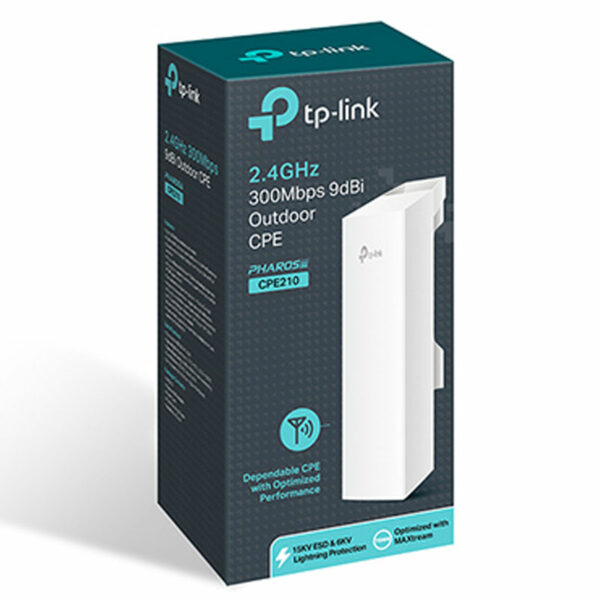

TP-Link CPE210 – 2.4GHz N300 Long Range Outdoor CPE for PtP and PtMP Transmission – Point to Point Wireless Bridge – 9dBi, 5km+ – Passive PoE Powered w/ Free PoE Injector – Pharos Control
Core Features:
- Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications.
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60-meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.
Additional information
Additional information
| Weight | 1.54 lbs |
|---|---|
| Dimensions | 10.63 × 5.2 × 4.17 in |
| Brand | TP-Link |
| Wi-Fi Standard | Wi-Fi 4 (802.11n) |
| Network Band | ISM |
| Frequency Band | 2.4 Ghz |
| Mounting Options/Type | Outdoor (Pole) |
Technical Specifications
| HARDWARE FEATURES | |
|---|---|
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Power Consumption | 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in. |
| Antenna Type | Built-in 9dBi 2×2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Frequency | 2.4~2.483GHz |
| Transmission Power | 27dBm/500mw (1dBm step adjustable) |
| SOFTWARE FEATURES | |
|---|---|
| Wireless Configurations | Pharos MAXtream TDMA Technology 802.11b/g/n modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Management | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| System Tools | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| POE ADAPTER FEATURES | |
|---|---|
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | > 80% |
| Certifications | FCC |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE 24VDC Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
