Description
Description

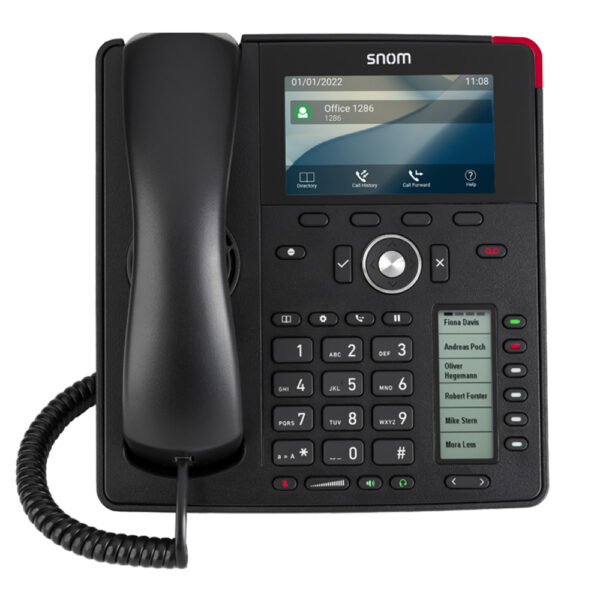

Snom D787 Desk Phone, 12 SIP accounts, 4.3″ color LCD (480×272), 6 (24) Self-label PFK, WiFi, GigE, 2x USB
Core Features:
- 4.3” (480×272) color LCD
- 6 (24) configurable self-labeling multicolor LED keys
- 2 USB ports
- Elegant design
- WLAN
- Electronic Hook Switch (EHS)1 support for wireless headsets
- D7 or D7C Expansion Module1 ready
- 2-port Gigabit Ethernet switch (RJ45)
- 3-year standard warranty
Additional information
Additional information
Weight | 2.6 lbs |
---|---|
Dimensions | 4.25 × 10.25 × 8.5 in |
Brand | Snom |
Phone Type | Desk, WiFi / WiFi Capable |
Technical Specifications
GENERAL INFO:
- Model: D787
- APN: 80-S179-00
- Part number: 00004621
- Box Contents:
- Phone unit
- Foot stand
- Handset with cord
- Ethernet cable
- Quick Start Guide
- Color: Black
- Warranty: 3 years
PHONE FEATURES:
- 12 SIP identities / accounts
- XML browser
- Call lists for dialed, received, missed calls
- Local directory with 1000 entries
- Multiple language support
- DTMF in-band / out-of-band / SIP-INFO
- Interoperable with all major IP PBX platforms
- Speed dialing
- URL dialing
- Local dial plan
- Automatic redial on busy
- Call completion (busy / unreachable)2
- Caller identification
- Call waiting
- Call blocking (deny list)
- Auto answer
- Hold
- Music on hold2
- Handling of up to 4 simultaneous calls
- Blind and attended transfer
- Call forwarding
- 3-way conferencing on the phone
- Extension monitoring, call pickup2
- Call park, call unpark2
- Multicast paging
- DND mode (do not disturb)
- Keyboard lock
- Client matter code (CMC)2
For a full list of specifications, please refer to the product datasheet
