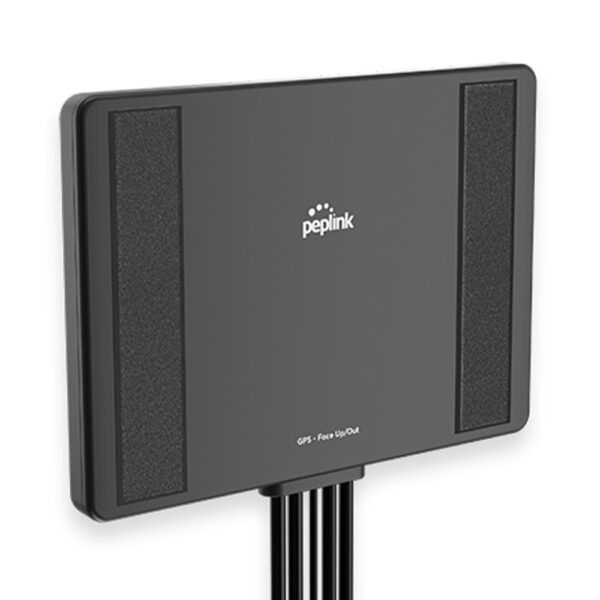

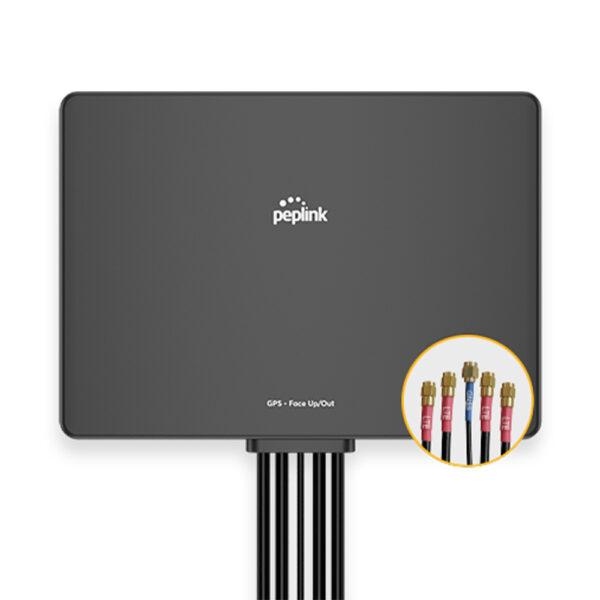

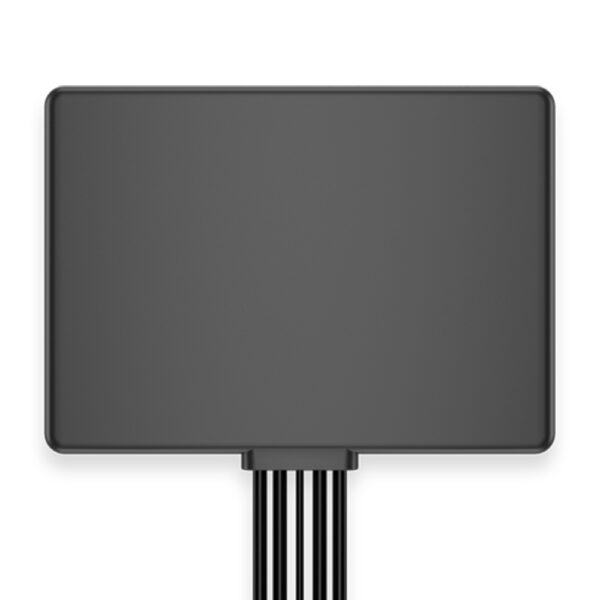

Peplink ANT-SLM-40G-S-B-1

Additional information

GENERAL INFO:

• Model: ANT-SLM-40G-S-B-1
• Package Contents:
  • Antenna:
    • Slim 40G
  • Accessories:
    • Velcro strip (hook and loop fastener)
    • (4pcs, length 4.7′ / 120mm)
• Cellular:
  • Antenna Elements:
    • 4 elements
  • Peak Gain & Frequencies:
    • 3.6dBi: 617-960MHz
    • 6.1dBi: 1710-2700MHz
    • 6.7dBi: 3400-4200MHz
    • 8.1dBi: 5000-6000MHz
  • VSWR:
    • <2.5 over 90% of the band
  • Feed Power Handling:
    • 10W
  • Input Impedance:
    • 50 Ω
  • Polarisation:
    • Linear
• GPS:
  • Frequency Range:
    • 1561-1602 MHz
  • Peak Gain:
    • 0.5dBi @ 1575MHz
    • 1.6dBi @ 1602MHz
  • VSWR:
    • < 2
  • Output Return Loss:
    • 10dB max
  • Gain: LNA:
    • 28 ±3dB
  • Noise Figure:
    • 1.5dB max at 3.3V
  • Operating Voltage:
    • 3.3V
  • Power Consumption:
    • 8.5 ±2.5mA at 3.3V
• Cable (Cellular):
  • Type:
    • CFD-200 (Cellular)
  • Loss:
    • 0.33 dB/m @ 900 MHz
    • 0.49 dB/m @ 2000 MHz
    • 0.55 dB/m @ 2500 MHz
    • 0.87 dB/m @ 5800 MHz
  • Diameter:
    • 0.2″ / 5.0mm
  • Jacket:
    • Half matt PVC, UV resistant
  • Termination:
    • SMA male
• Cable (GPS):
  • Type:
    • RG-174 (GPS)
  • Loss:
    • 3.4 dB/m @ 1000 MHz
    • 4.9 dB/m @ 1800 MHz
  • Diameter:
    • 0.1″ / 2.7mm
  • Jacket:
    • Half matt PVC, UV resistant
  • Termination:
    • SMA male
• Mechanical:
  • Product Dimensions:
    • 7.09″x5.12″x0.59″ / 180x130x15mm
  • Packaged Dimensions:
    • 9.61″x3.15″x9.84″ / 244x80x250mm
  • Enclosure Material:
    • UV stable PC
  • Color:
    • Black
• Supported Types:
  • Window
  • Wall

For a full list of specifications, please refer to the product datasheet
