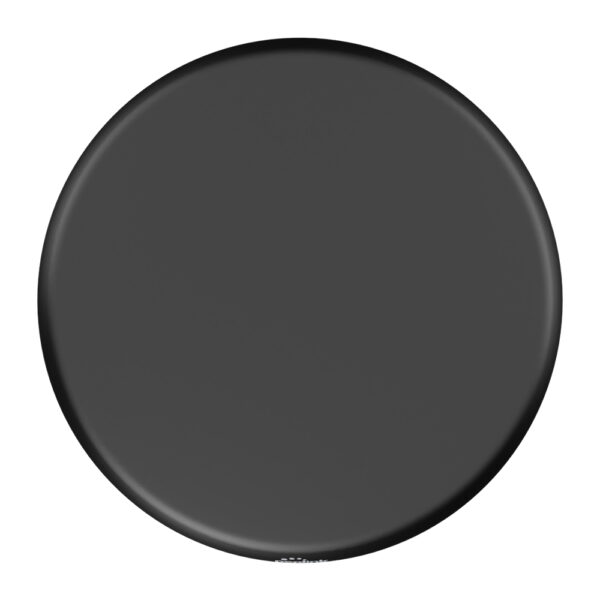

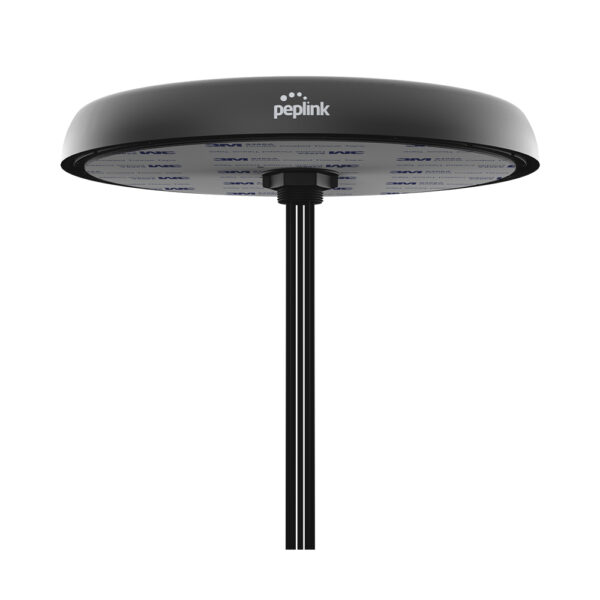

Peplink ANT-MB-82G-S-B-6 - Image 1

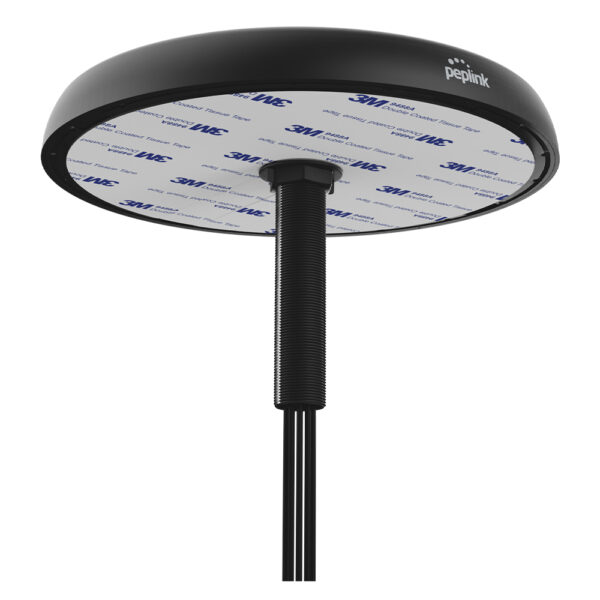

Peplink ANT-MB-82G-S-B-6 - Image 2

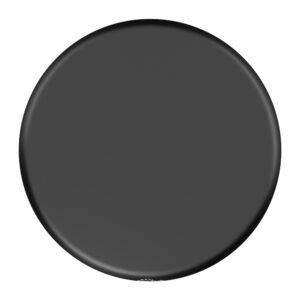

Peplink ANT-MB-82G-S-B-6 - Image 3

Peplink ANT-MB-82G-S-B-6 Documents

SKU: PEP-ANT-MB-82G-S-B-6

Peplink ANT-MB-82G-S-B-6

Login to view prices

MSRP: $699.00

Peplink Mobility 82G | 11-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver, 8x LTE/5G, 2x Wi-Fi, 1x GPS, Frequency range: 600-6000MHz, IP68 Rating, Cellular and GPS connector type: SMA male, Wi-Fi connector type: RP-SMA male, Color: Black, Cable length: 6.5 ft / 2m

SKU: PEP-ANT-MB-82G-S-B-6

You may also like…

Description

Peplink Mobility 82G, 11-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver

Core Features:

  • 11-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver
  • 8x LTE/5G, 2x Wi-Fi, 1x GPS
  • Frequency range: 600-6000MHz
  • IP68 Rating
  • Cellular and GPS connector type: SMA male
  • Wi-Fi connector type: RP-SMA male
  • Color: Black
  • Cable length: 6.5 ft / 2m

Additional information

Weight 1.8 lbs
Dimensions 20.16 × 20.09 × 9.06 in
Brand

Peplink
Accessory Type

Antennas

GENERAL INFO:

  • Model: ANT-MB-82G-S-B-6
  • Package Contents:
    • Antenna:
      • MB-82G
    • Accessories:
      • Long and short thread
      • Double sided 3M adhesive pad
        • Diameter: 15.2” / 386 mm
        • Thickness: 0.08” / 2 mm
  • Cellular:
    • Antenna Elements:
      • 8 elements
    • Peak Gain & Frequencies:
      • 5.4dBi: 617-960MHz
      • 7.5dBi: 1400-2700MHz
      • 8.1dBi: 3400-4200MHz
      • 8.7dBi: 5000-6000MHz
    • VSWR:
      • < 2.0 over 95% of the band
    • Feed Power Handling:
      • 10W
    • Input Impedance:
      • 50 Ω
    • Polarisation:
      • Linear
  • Wi-Fi:
    • Antenna Elements:
      • 2 elements
      • 6.0dBi: 2400-2500MHz
      • 7.4dBi: 5000-6000MHz
    • VSWR:
      • < 2.0
    • Feed Power Handling:
      • 10W
    • Input Impedance:
      • 50 Ω
    • Polarisation:
      • Linear
  • GPS:
    • Frequency Range:
      • 1575-1602 MHz
    • Peak Gain:
      • 1.2 dBiC: 1575MHz
      • 2.0 dBiC: 1602MHz
    • VSWR:
      • < 1.6
    • Output Return Loss:
      • -10dB max
    • Gain: LNA:
      • 29 ± 3 dB
    • Operating Voltage:
      • 3.3 V
    • Power Consumption:
      • 6 ±2 mA at 3.3 V
  • Cable (LTE/5G, Wi-Fi):
    • Type:
      • CFD-200
    • Loss:
      • 0.33 dB/m @ 900 MHz
      • 0.49 dB/m @ 2000 MHz
      • 0.55 dB/m @ 2500 MHz
      • 0.87 dB/m @ 5800 MHz
    • Diameter:
      • 0.2 in. / 5.0 mm
    • Jacket:
      • Half matt PVC, UV resistant
    • Termination:
      • QMA male, SMA male, RP-SMA male (Wi-Fi)
  • Cable (GPS):
    • Type:
      • RG-174
    • Loss:
      • 3.4 dB/m @ 1000 MHz
      • 4.9 dB/m @ 1800 MHz
    • Diameter:
      • 0.1″ / 2.7mm
    • Jacket:
      • Half matt PVC, UV resistant
    • Termination:
      • QMA male, SMA male
  • Mounting:
    • Supported Types:
      • Panel, surface (with additional mount)
        magentic (with additional mount)
    • Mounting Hole:
      • 1.7″ / 43mm
    • Max Panel Thickness:
      • up to 6.7″ / 170mm
  • Mechanical:
    • Product Dimensions:
      • 2.46” / 62.5 mm – Height
        (spigot not included)
        16.83” / 427.4 mm – Diameter
    • Packaged Dimensions:
      • 20.16″ x 20.09″ x 9.06″
        512x510x230mm
    • Radome Material:
      • UV stable PC

For a full list of specifications, please refer to the product datasheet
