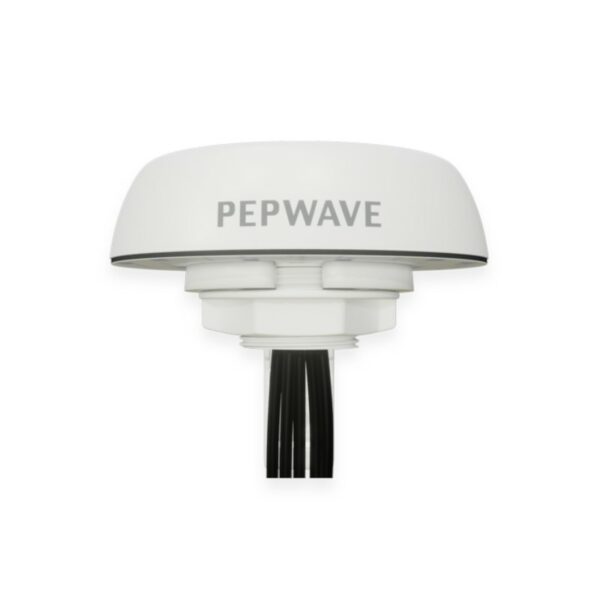

Peplink Mobility 40G - ANT-MB-40G-Q-W-6 - Image 1

Peplink Mobility 40G - ANT-MB-40G-Q-W-6 Documents

SKU: PEP-ANT-MB-40G-Q-W-6

Peplink Mobility 40G – ANT-MB-40G-Q-W-6

Login to view prices

MSRP: $249.00

Peplink Mobility 40G | 4×4 MIMO 5G Ready Cellular Antenna System with GPS Receiver

SKU: PEP-ANT-MB-40G-Q-W-6

You may also like…

Description

The Peplink Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4×4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking. The Mobility 40G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in SMA, QMA or N-type.

Core Features:

  • 4×4 MIMO 5G Ready Cellular Antenna System with GPS Receiver
  • 4xLTE, 1xGPS
  • 600-6000MHz
  • IP68, QMA, White, 6.5ft / 2m

Additional information

Weight 3.5 lbs
Dimensions 8.9 × 8.46 × 4.29 in
Brand

Peplink
Accessory Type

Antennas

Cellular:

  • Antenna elements: 4 elements
  • Cellular frequencies:
    • 0.3dBi@ 617-960MHz
    • 5.1dBi@ 1710-2700MHz
    • 5.8dBi@ 3400-4200MHz
    • 7.0dBi@ 4900-6000MHz
  • Cellular bands
    • LTE bands B1 to B86
    • (except B31, B72, B73, B87, B88),
    • 5G bands n1 to n99
  • VSWR: < 2.5 over 85% of the band
  • Feed power handling: 10W
  • Input impedance: 50 Ω
  • Polarisation: Linear
  • Ground plane: Not required

GPS:

  • Frequency range: 1561-1602 MHz
  • Peak gain:
    • 0.5dBi@1575MHz
    • 1.6dBi@1602MHz
  • VSWR: < 2.5
  • Output return loss: 10dB max
  • Gain: LNA 28 ±3dB
  • Noise figure: 1.5dB max at 3.3V
  • Operating Voltage: 3.3V
  • Power consumption: 8.5 ±2.5mA at 3.3V

For a full list of specifications, please refer to the product datasheet
