Peplink Mobility 22G – ANT-MB-22G-S-W-6

Login to view prices

MSRP: $249.00

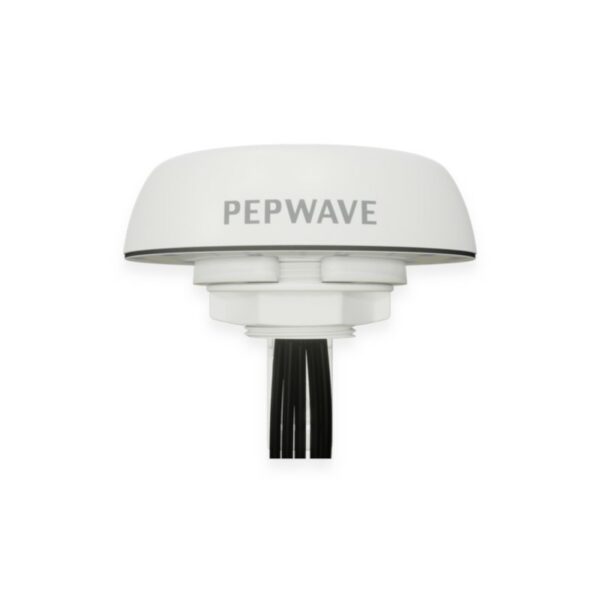

Peplink Mobility 22G | 5-in-1 cellular and Wi-Fi antenna system with GPS receiver

SKU: PEP-ANT-MB-22G-S-W-6

You may also like…

Description

The Peplink Mobility 22G is a 5 in 1 antenna built for mobile applications. It supports 2×2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking. The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.

Core Features:

  • 5-in-1 cellular and Wi-Fi antenna system with GPS receiver
  • 2x LTE, 2x Wi-Fi, 1x GPS
  • 600-6000MHz
  • IP68, SMA/RP-SMA, White, 6.5ft / 2m

Additional information

Weight 3.5 lbs
Dimensions 8.9 × 8.46 × 4.29 in
Brand

Peplink
Accessory Type

Antennas

Cellular:

  • Antenna elements:  2 elements
  • Cellular frequencies:
    • 1.2dBi: 617-960MHz
    • 5.7dBi: 1710-2700MHz
    • 5.6dBi: 3400-4200MHz
    • 6.0dBi: 5000-6000MHz
  • Cellular bands:
    • LTE bands B1 to B86
    • (except B31, B72, B73, B87, B88),
    • 5G bands n1 to n99
  • VSWR: < 2.5 over 85% of the band
  • Feed power handling: 10W
  • Input impedance: 50 Ω
  • Polarisation: Linear

For a full list of specifications, please refer to the product datasheet
