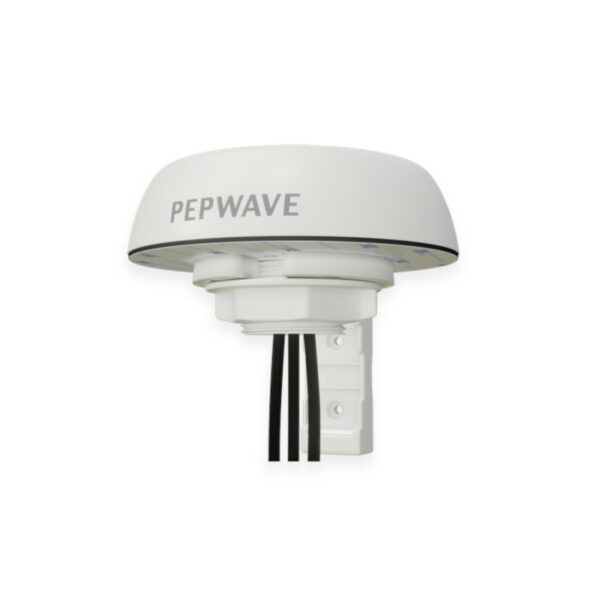

Peplink Mobility 20G - ANT-MB-20G-S-W-6 - Image 1

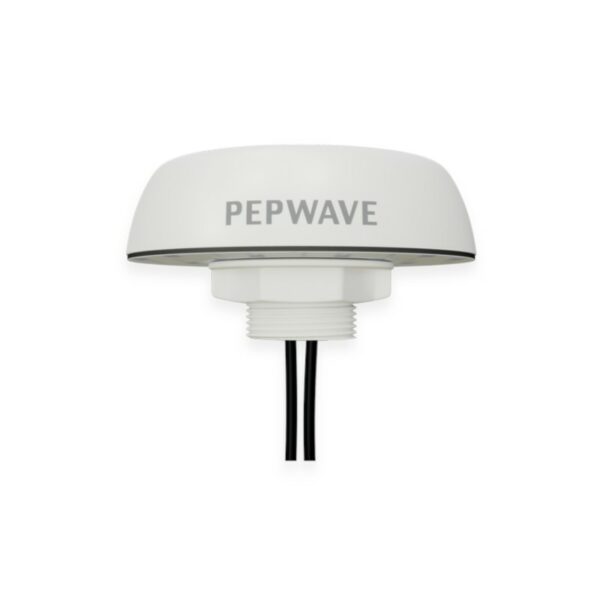

Peplink Mobility 20G - ANT-MB-20G-S-W-6 - Image 2

Peplink Mobility 20G - ANT-MB-20G-S-W-6 Documents

SKU: PEP-ANT-MB-20G-S-W-6

Peplink Mobility 20G – ANT-MB-20G-S-W-6

Login to view prices

MSRP: $199.00

Peplink Mobility 20G | 2xLTE/5G, 1xGPS 600-6000MHz, IP68, SMA, White, 6.5 ft / 2m

SKU: PEP-ANT-MB-20G-S-W-6

You may also like…

Description

Mobility 20G

Core Features:

  • 2×2 MIMO 5G Ready Cellular Antenna System with GPS
  • 2xLTE/5G, 1xGPS
  • 600-6000MHz
  • IP68, SMA, White, 6.5 ft / 2m

Additional information

Weight 1.8 lbs
Dimensions 8.9 × 8.5 × 4.3 in
Brand

Peplink
Accessory Type

Antennas

Cellular:

  • Antenna elements 2 elements
  • Cellular frequencies:
    • 1.0dBi: 617-960MHz
    • 5.6dBi: 1710-2700MHz
    • 6.1dBi: 3400-4200MHz
    • 5.3dBi: 4900-6000MHz
  • Cellular bands
    • LTE bands B1 to B86
    • (except B31, B72, B73, B87, B88),
    • 5G bands n1 to n99
  • VSWR: < 2.5 over 85% of the band
  • Feed power handling: 10W
  • Input impedance: 50 Ω
  • Polarisation: Linear
  • Ground plane: Not required

GPS:

  • Frequency range: 1561-1602 MHz
  • Peak gain
    • 0.5dBi@1575MHz
    • 1.6dBi@1602MHz
  • VSWR: < 2 dB
  • Output return loss: 10dB max
  • Gain: LNA 28 ±3dB
  • Noise figure: 1.5dB max at 3.3V
  • Operating Voltage: 3.3V
  • Power consumption: 8.5 ±2.5mA at 3.3V

For a full list of specifications, please refer to the product datasheet
