Peplink Mobility 02 – ANT-MB-02-R-B-6

Login to view prices

MSRP: $149.00

Peplink Mobility 02 | 2×2 MIMO Wi-Fi Dual Band Antenna

SKU: PEP-ANT-MB-02-R-B-6

You may also like…

Description

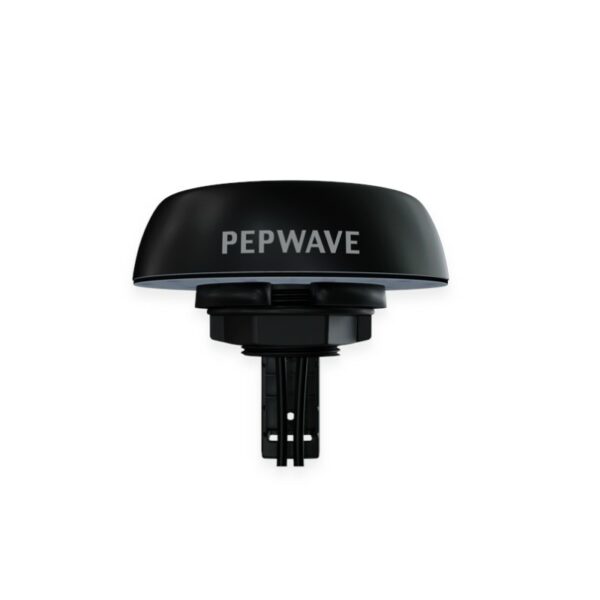

The Peplink Mobility 02 is a dual-band (2.4GHz & 5GHz) Wi-Fi antenna built for mobile applications. The Mobility 02 supports 2×2 MIMO and has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in RP-SMA connector.

Core Features:

  • 2×2 MIMO Wi-Fi Dual Band Antenna
  • 2x Wi-Fi
  • 2400-6000MHz
  • IP68, RP-SMA, Black, 6.5ft / 2m

Additional information

Weight 3.5 lbs
Dimensions 8.9 × 8.46 × 4.29 in
Brand

Peplink
Accessory Type

Antennas

Wi-Fi:

  • Antenna elements: 2 elements
  • Cellular frequency bands:
    • 6.2dBi: 2400-2500 MHz
    • 7.3dBi: 4900-6000 MHz
  • VSWR: < 2.0
  • Feed power handling: 10W
  • Input impedance: 50 Ω
  • Polarisation: Linear

Cable:

  • Type: CFD-200
  • Length: 6 ft 7 in. / 2m
  • Loss:
    • 0.33 dB/m @ 900 MHz
    • 0.49 dB/m @ 2000 MHz
    • 0.55 dB/m @ 2500 MHz
    • 0.87 dB/m @ 5800 MHz
  • Diameter: 0.2 in. / 5.0mm
  • Jacket: Half matt PVC, UV resistant
  • Termination: RA-SMA male

For a full list of specifications, please refer to the product datasheet
