SKU: PEP-ANT-MR-10-N-W

Peplink Maritime 10 – ANT-MR-10-N-W

Login to view prices

MSRP: $349.00

Peplink Maritime 10  | 1xLTE/5G, 600-4200MHz, IP68, N-type, White

SKU: PEP-ANT-MR-10-N-W

You may also like…

Description

Peplink Maritime 10 is Designed for Marine Applications, IP68 rated, durable omnidirectional antenna, with UV-stable housing, providing the best signal reception. High performance in all low, mid and high bands for the best 5G conectivity at sea. Wide frequency range (600-4200MHz) supporting LTE

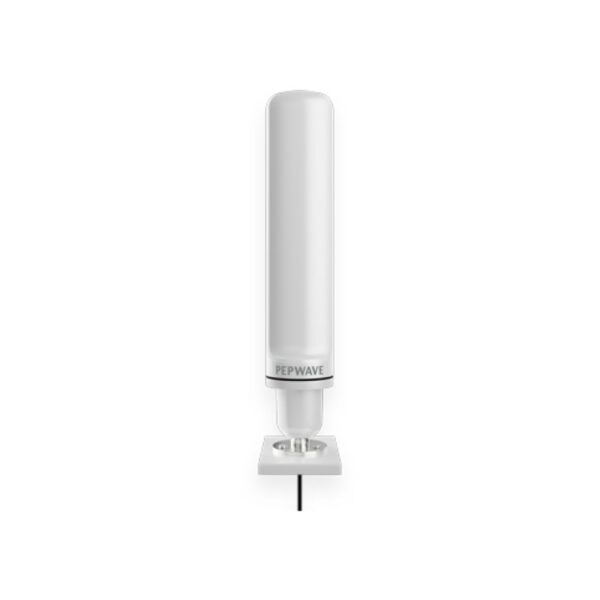

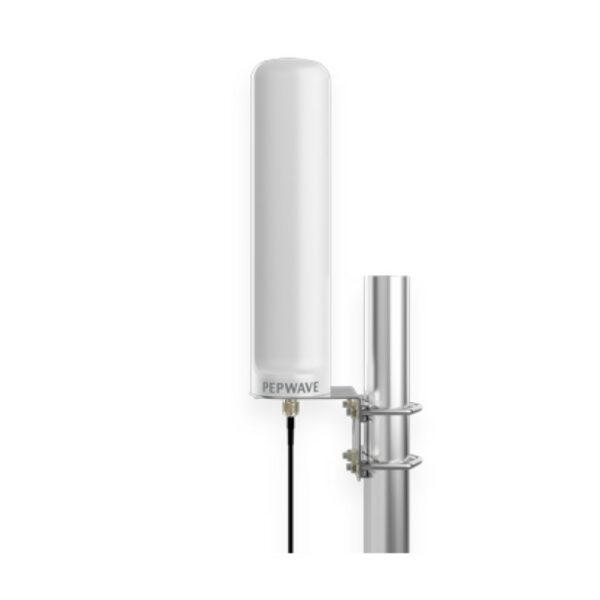

and 5G connectivity. Supports standard marine 1″ 14 TPI thread mount and also has an L-shape mount for non standard installations.

Core Features:

  • 2×2 MIMO 5G Ready Cellular Antenna System with GPS
  • 2xLTE/5G, 1xGPS
  • 600-4200MHz
  • IP68, N-Type, White

** Antenna cable is not included.
** 1″ 14TPI male adapter (ACW-652) is not included

Additional information

Weight 8.4 lbs
Dimensions 26.3 × 6 × 6.1 in
Brand

Peplink
Accessory Type

Antennas

Cellular:

  • Antenna elements: 1 element
  • Cellular frequency bands & Gain:
    • 2.8dBi: 617-960MHz
    • 8.2dBi: 1710-2700MHz
    • 9.3dBi: 3400-4200MHz
  • VSWR:
    • <2.8: 617-960MHz
    • <2.1: 1710-4200MHz
  • Max feed power handling: 10W
  • Input impedance: 50 Ω
  • Polarisation: Linear

Mechanical:

  • Termination: N-type female
  • Housing material:  UV stable PC

For a full list of specifications, please refer to the product datasheet
