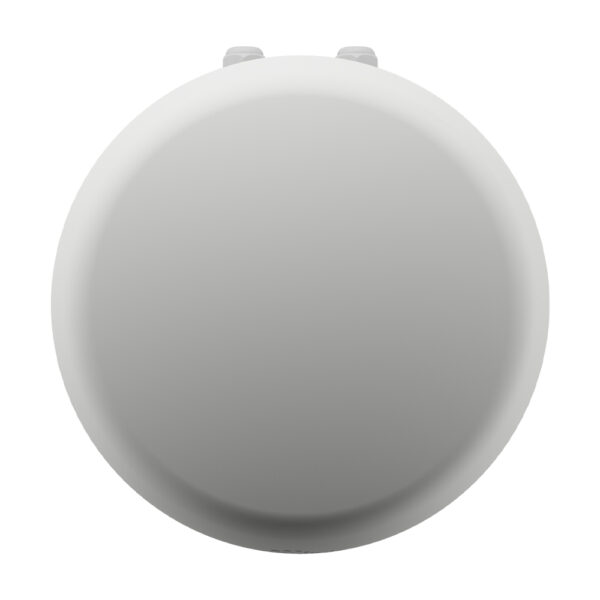

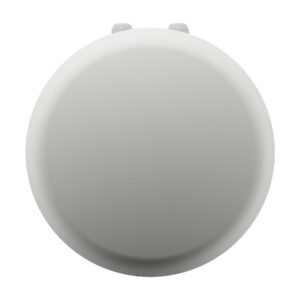

Peplink ANT-MAX - Image 1

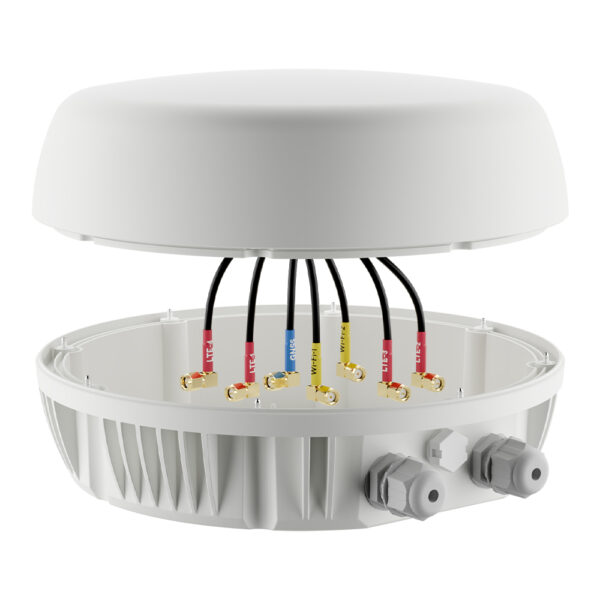

Peplink ANT-MAX - Image 2

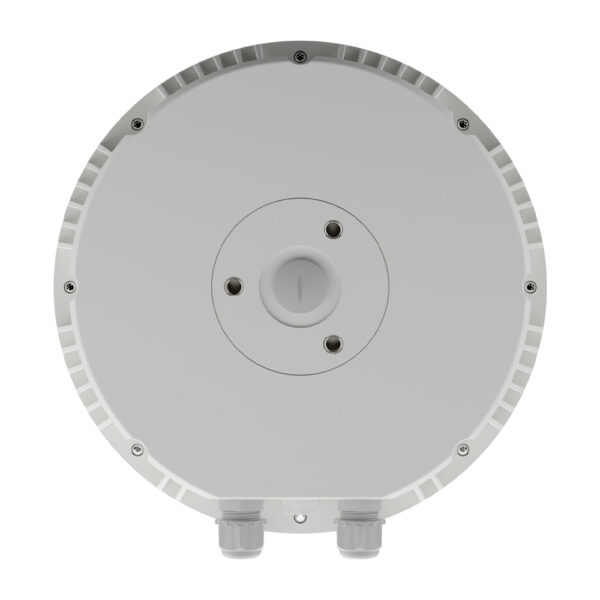

Peplink ANT-MAX - Image 3

Peplink ANT-MAX Documents

SKU: PEP-ANT-MAX

Peplink ANT-MAX

Login to view prices

MSRP: $349.00

Peplink Antenna Max IP-rated enclosure with built-in antenna | 5G Ready Cellular Wi-Fi Antenna Enclosure with GPS, 4x LTE/5G, 2x Wi-Fi, 1x GPS, Frequency range: 600-6000MHz, Cellular and GPS connector type: SMA male, Wi-Fi connector type: RP-SMA male, Compatible with BR1 Miniseries, Transit Duo Pro, BR1 Pro 5G, BR1 Pro (CAT-20), POTS Adapter

SKU: PEP-ANT-MAX

You may also like…

Description

Peplink Antenna Max, IP-rated enclosure with built-in antenna to boost cellular and GPS coverage for your Peplink router

Core Features:

  • 5G Ready Cellular Wi-Fi Antenna Enclosure with GPS
  • 4x LTE/5G, 2x Wi-Fi, 1x GPS
  • Frequency range: 600-6000MHz
  • Cellular and GPS connector type: SMA male
  • Wi-Fi connector type: RP-SMA male
  • Compatible with BR1 Miniseries, Transit Duo Pro, BR1 Pro 5G, BR1 Pro (CAT-20), POTS Adapter

Additional information

Weight 0.66 lbs
Dimensions 10.17 × 9.84 × 4.72 in
Brand

Peplink
Accessory Type

Enclosure, Antennas

GENERAL INFO:

  • Model: ANT-MAX
  • Package Contents:
    • Antenna Box
    • L-Mount Set
    • Double sided 3M adhesive pad
    • 3pcs Cable Gland
    • 2pcs Hole Plug
  • Mounting:
    • Supported Types:
      • Surface, wall, pole, deck
  • Mechanical:
    • Product Dimensions:
      • 4.72″ / 120 mm – Height
      • 9.84″ / 250 mm – Diameter
    • Packaged Dimensions:
      • TBD
    • Enclosure Material:
      • UV stable PC
  • Environmental:
    • IP Rating:
      • IP67
    • Operating Temperature:
      • -40° – 176°F /
      • -40° – 80°C
    • Storage Temperature:
      • -40° – 176°F /
      • -40° – 80°C

For a full list of specifications, please refer to the product datasheet
