Description
Description
VZ-X is IPEVO’s versatile document camera with three connection modes: Wi-Fi, HDMI, and USB. With EZCast, you can wirelessly project to HDMI without a computer. It’s a simple one-click solution for freedom in any space * the package comes with an EZCast dongle *
Core Features:
- Wireless connect from anywhere in the classroom
- By connecting via WiFi to the computer, teachers can move freely around the classroom and capture images from different desks. VZ-X can also integrate with wireless tablet devices such as the iPad, enabling you to display the captured images using IPEVO’s Visualizer software.
- You can access the web management interface by connecting to VZ-X’s default IP address using a PC browser. From there, you can modify wireless network settings, allowing VZ-X to join your local network. This enables both PCs and tablet devices on the same network to use IPEVO’s Visualizer software to display images from the VZ-X camera.
- Direct HDMI projection to a TV or projector. No computer required.
- Stream real-time images directly to your TV, projector, or monitor using an HDMI connection.
- Note: HDMI connection doesn’t supply VZ-X with power. Please make sure that there’s sufficient battery power for your session. Otherwise please plug it into a wall outlet using any of your phone or tablet 5V/2A USB power adapter, or, connect it to a powered USB port of your TV, projector, or computer.
- Wirelessly Cast to HDMI Monitor or TV Without a PC
- EZCast, the favored wireless screen-casting adapter*, integrated with VZ-X, allows teachers to project images onto HDMI screens with a simple click (5-10 seconds) and wirelessly share content on TVs and monitors. You don’t need a computer setup. Move freely around the classroom.
- EZCast is available from the IPEVO store or through our sales team. Update VZ-X to Firmware version 2033 or newer. Perform a Reset after the update.
- Please switch VZ-X to Wi-Fi mode on the back. After holding the camera button for 5-10 seconds, it may take 3-5 seconds to connect and display the image.
- Wide software compatibility
- When connected to your computer via USB, you can use VZ-X with IPEVO’s Visualizer software that allows you to further modify the camera’s video feed, or you can create flipped classroom videos with software such as Seesaw, Camtasia, or OBS.
- You can also use VZ-X as a webcam for video conferencing or remote teaching via communication software such as Zoom, GoToMeeting, Skype, or Google Meet.
- High-quality image and enhanced performance under low-light conditions
- 8 MP sensor by Sony with Ambarella system-on-a-chip (SoC) provide great details and image quality with better image processing. Enjoy faster focus speed, improved noise reduction, and excellent color reproduction.

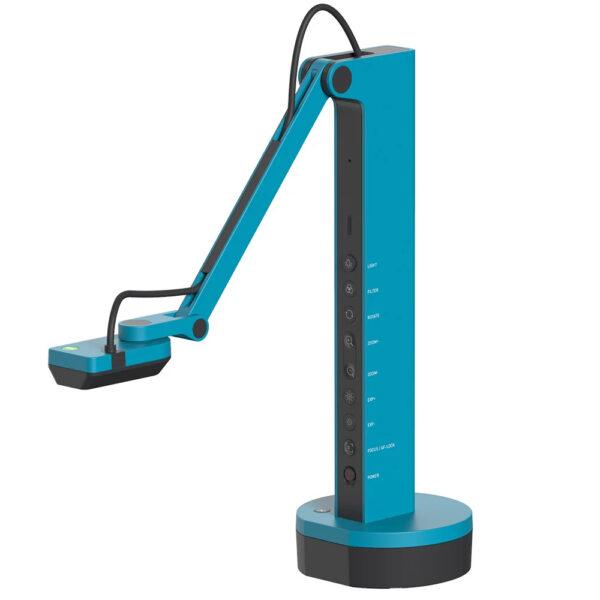

- Highly adjustable and durable body

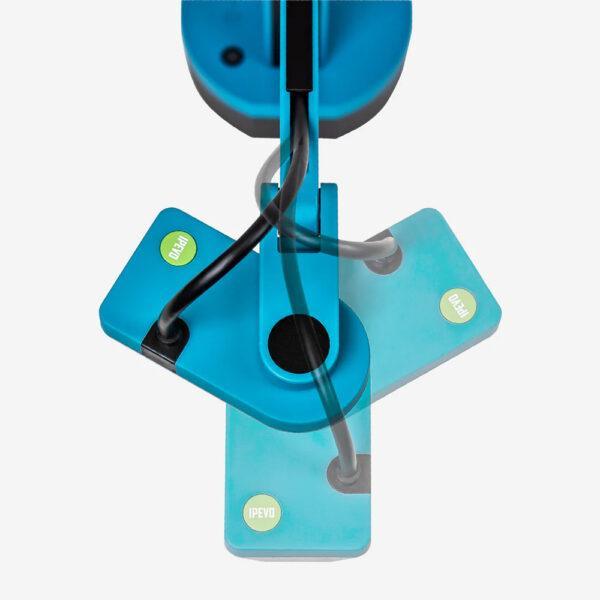

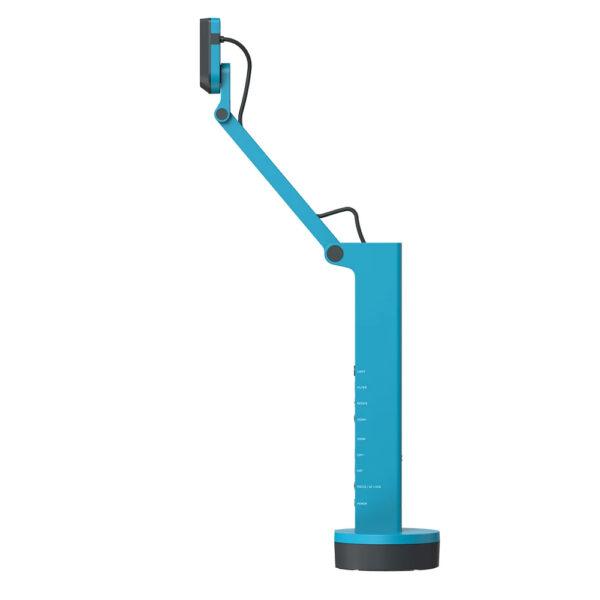

- The VZ-X’s swiveling head and multi-jointed body let you capture images from different heights, angles, and orientations. You can also switch between vertical and horizontal orientation – all in real time.
- The camera’s body is made to last, thanks to the use of glass fiber reinforced thermoplastic, that reinforces the arm with the strength of metal while keeping the weight low at the same time.

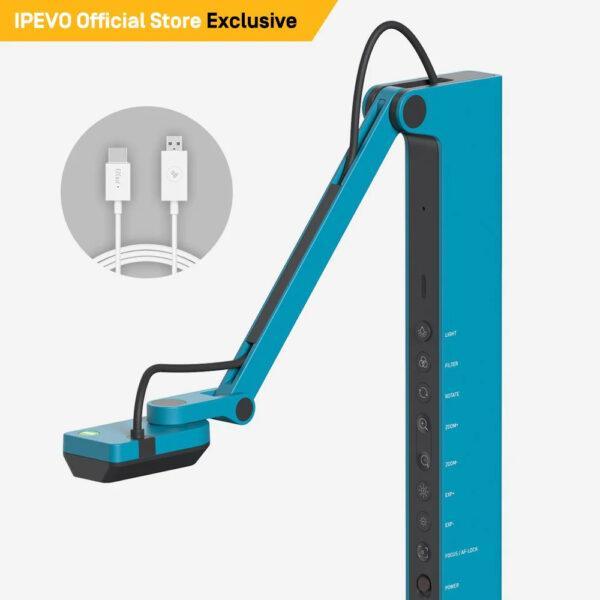

- In the back of VZ-X you can now find a USB-C port that makes connecting cables easier and safer.

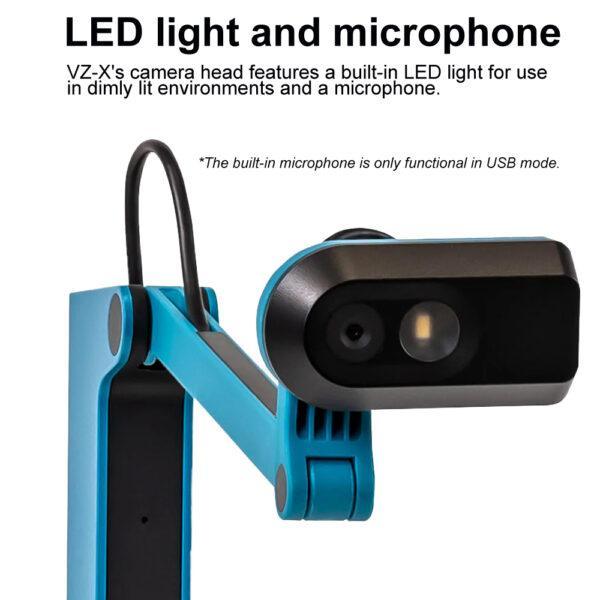

- LED light and microphone

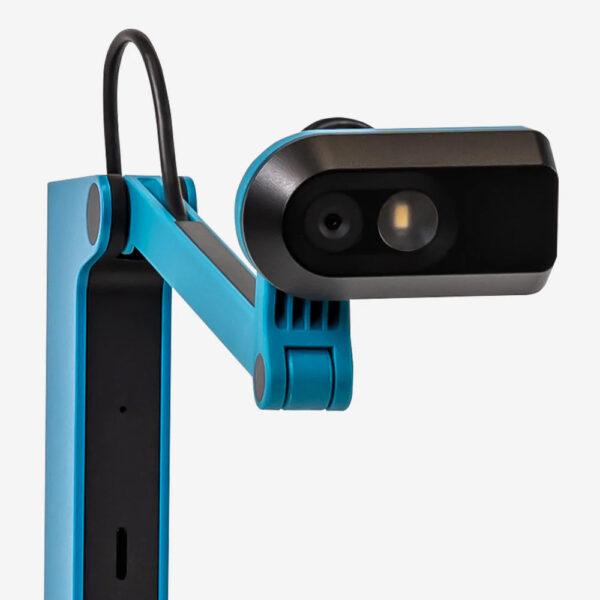

- VZ-X’s camera head features a built-in LED light for use in dimly lit environments and a microphone.
*The built-in microphone is only functional in USB mode.
- VZ-X’s camera head features a built-in LED light for use in dimly lit environments and a microphone.

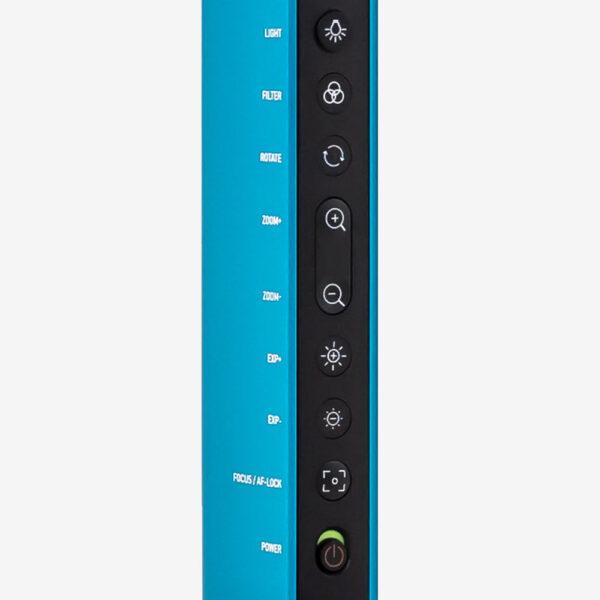

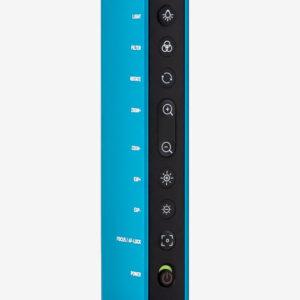

- Camera control buttons
- The Action Button located at the VZ-X’s base provides quick access to Visualizer software’s functions such as snapshot, video recording, scan document, and more.
*The Action Button is only functional in USB or Wi-Fi mode while using with IPEVO Visualizer software.
- The Action Button located at the VZ-X’s base provides quick access to Visualizer software’s functions such as snapshot, video recording, scan document, and more.
- IPEVO Document Camera: Upgrade to Scanner in a Snap
- Download SnapCapture OCR scanning software, to enhance your document camera with capabilities for scanning, editing, and exporting digital files, featuring text recognition in 200 languages.
- STEP 1
- Download IPEVO software SnapCapture OCR and open it.
- STEP 2
- Set up the document camera behind the scanning platform and connect it to the computer via USB.
- STEP 3
- Place the document under the lens and scan to complete the process.
- STEP 1
- Download SnapCapture OCR scanning software, to enhance your document camera with capabilities for scanning, editing, and exporting digital files, featuring text recognition in 200 languages.
Additional information
Additional information
Weight | 2.68 lbs |
---|---|
Dimensions | 6.50 × 6.30 × 14.00 in |
Brand | IPEVO |
Camera Megapixels | 8+ MP |
Frame Rate | 30 FPS |
Built-in Microphone | Yes |
Lens | Auto-focus |
Ports | HDMI, USB |
Mounting Options/Type | Desk |
Technical Specifications
GENERAL INFO:
- Model: CDVH-04IP
- Part number: B-011-0-08-00
- Product Name: IPEVO VZ-X Wireless / HDMI / USB 8MP
- Color: Blue
- Package Contents:
- VZ-X pack x 1
- EZC CS2 pack x 1
- Size & Weight:
- Size (L x W x H)
- D x W x H (when folded): 4.57”x 4.25” x 12.68” (11.6 x 10.8 x 32.2cm)
- Weight
- 2.58lbs (1.17kg)
- Size (L x W x H)
- Camera:
- 8.0 Megapixel
- Full autofocus lens
- High definition resolutions-up to 3264 x 2448 (USB mode), and up to 1920 x 1080 (HDMI or Wi-Fi mode)
- Up to 30 fps live video capture (at full HD)
- Output:
- Wi-Fi, HDMI and USB
- Max Shooting Area:
- 11.14” x 19.72” (283 x 501mm) [16:9]
- 14.29” x 19.01” (363 x 483mm) [4:3]
- Compatibility:
- Works with Mac, PC, Chromebook, iPad/iPhone (Wi-Fi mode only),
Android Tablet/Android Phone (Wi-Fi mode only),
4th generation and above Apple TV (Wi-Fi mode only)
- Works with Mac, PC, Chromebook, iPad/iPhone (Wi-Fi mode only),
