InVid PN3A-32FNH 32/16TB - Image 1

InVid PN3A-32FNH 32/16TB Documents

SKU: INV-PN3A-32FNH/16TB

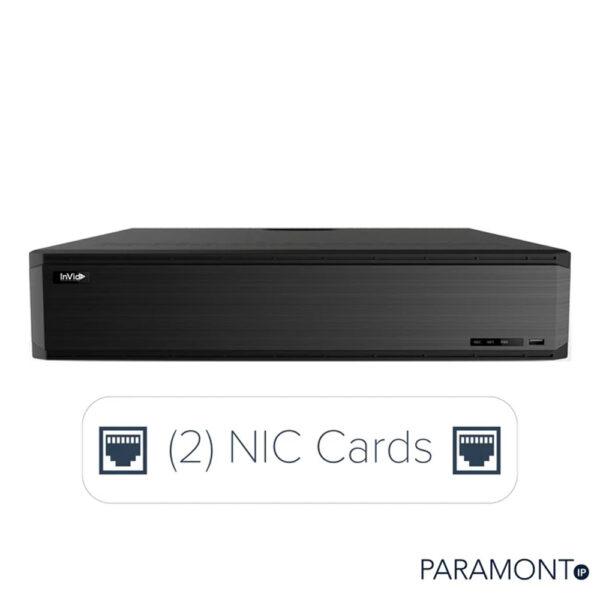

InVid PN3A-32FNH 32/16TB

Login to view prices

MSRP: $2,350.00

InVid PN3A-32FNH 32/16TB: 32 Ch NVR, 640Mbps, (2) NIC Cards, 8 HD Bays, up to 16 Megapixel, 16TB

SKU: INV-PN3A-32FNH/16TB

You may also like…

Description

InVid PN3A-32FNH 32/16TB: 32 Ch NVR, 640Mbps, (2) NIC Cards, 8 HD Bays, up to 16 Megapixel, 16TB

Core Features:

  • Up to 16 Megapixel Resolution Recording
  • 640 Mbps Bit Rate Input
  • Supports up to 16 channel simultaneous playback
  • Outputs – 1 HDMI (8K/4K), 2 HDMI (4K), 1 HDMI (1080p), VGA (1080p)
  • True Facial Recognition Capable with Compatible Camera
  • Smart Analytic Support/Including AI By ONVIF
  • H.265S/ H.265+/ H.265/ H.264
  • Local Fisheye Dewarping Capabilities
  • 8 Hard Drive Bays
  • (2) NIC Cards: Connect Cameras via Switch Behind Closed Network
  • Free iOS & Android Apps for Smart Phones & Tablets
  • Free Central Management Software (CMS) for PC/MAC
*If Using 8K on HDMI 1, HDMI 2 is Disabled

Additional information

Weight 14 lbs
Dimensions 17.30 × 15.40 × 2.80 in
Brand

InVid
IP Camera Accessories

NVR

GENERAL INFO:

  • Model: PN3A-32FNH 16TB
  • Video:
    • IP Video Input:
      • 64CH
    • Network Bandwidth:
      • Incoming: 640Mbps
      • Outgoing: 640Mbps
    • Compression:
      • H.264/H.265/H.265+/H.265S
  • Audio:
    • Network input:
      • 64
    • Local Input:
      • RCA×1 (for two-way talk)
    • Local Output:
      • RCA×1
    • HDMI Audio Output:
      • Support
    • Compression:
      • G.711(U/A)
  • Record:
    • Resolution:
      • 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P
        /1280×1024/960P/720P/960H/D1/CIF
    • Frame Rate:
      • N:30fps
      • P:25fps
  • Alarm:
    • Mode:
      • Manual, sensor, motion, exception, smart events, etc.
    • Input:
      • 16CH
    • Output:
      • 4CH
    • Triggering:
      • Record, snapshot, preset, e-mail, etct.
  • Face:
    • Face Detection Performance (AI by IPC):
      • 64CH (PAR-P2FACE/NH-AI Models)
    • Face Detection Performance (AI by Device):
      • 4CH (4MP)
    • Face Recognition Performance (for Non-True Face Rec Cameras):
      • 16CH (Total Channels NVR can compute for facial recognition)
    • Comparison Capability:
      • 36 pictures/second
    • Face Picture Database:
      • 32 libraries
      • 10000 face pictures
    • Face Picture Search:
      • Search by picture is supported
    • Database Management:
      • Add, modify, delete and search face pictures
    • Face Picture Adding:
      • Add face pictures through APP,
        WEB and external import
    • Face Picture Comparison:
      • Supports successful face recognition
        alarm and stranger match alarm
    • Track:
      • Track display on a map
    • Statistical Graph of Information:
      • Bar graph
    • Statistical Mode of Information:
      • Statistics by day, week, month, quarter
        as well as customized time period
  • Video Structure Analysis:
    • Human/Vehicle Classification (AI by IPC):
      • Up to 64CH
    • Human/Vehicle Classification (AI by Device):
      • 8CH (2MP)
    • Second Level Human/Vehicle Attribute Analysis:
      • Yes
  • Network:
    • Protocol:
      • TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP,
        NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
    • Interface:
      • RJ45 10/100/1000Mbps ×2
    • Client Connection:
      • Max. 128 user’s access
  • Mobile Device:
    • OS:
      • iOS, Android
  • Storage:
    • HDD Interface:
      • SATA×8 max 18TB per HDD
    • RAID Type:
      • RAID0,1,5,6,10
    • E-SATA Interface:
      • 2 (Single Drive per. Max 18TB. Recording Only)
  • Port:
    • USB:
      • USB3.0×1 USB2.0 ×2(Front:1) USB to HDD (Max 1TB)
    • RS485:
      • Yes (full duplex), connect to PTZ
    • RS232:
      • Yes
    • Reset:
      • Yes
    • Remote Controller:
      • Included
  • Others:
    • Power:
      • ATX-200W
    • Consumption:
      • ≤50W (without HDD)
    • Dimensions:
      • 17.5 x 17.2 x 3.5in (445 ×436 ×90mm)
    • Certificate:
      • CE, FCC
    • Environmental Protection:
      • Directive EU RoHS, WEEE (2012/19/EU),
        Directive 94/62/EC and
        REACH(EC1907/2006)

For a full list of specifications, please refer to the product datasheet
