Grandstream GWN7811P Documents

SKU: GRA-GWN7811P

Grandstream GWN7811P

Login to view prices

MSRP: $195.00

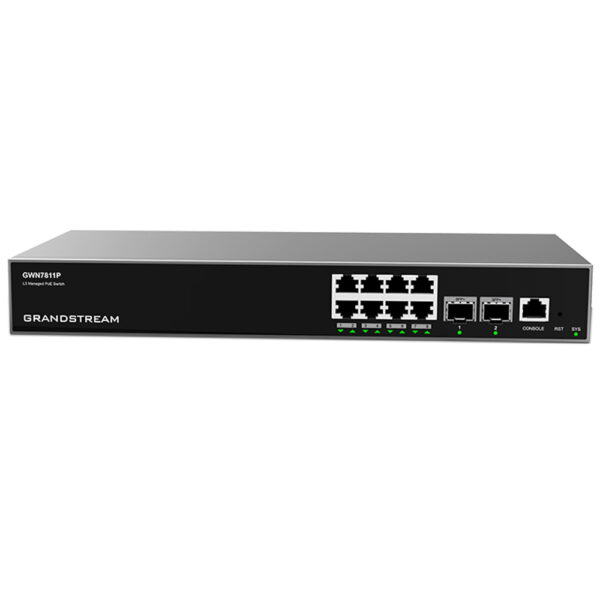

Grandstream GWN7811P Enterprise Layer 3 Managed PoE Network Switch, 8 x GigE, 2 x SFP+

SKU: GRA-GWN7811P

You may also like…

Description

The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses.

Core Features:

  • 8 x Managed PoE Network Switch
  • 2 x SFP+
  • Supports deployment in IPv6 and IPv4 networks.
  • ARP Inspection, IP Source Guard, DoS protection, port forwarding security & DHCP snooping.
  • Embedded controller to manage switch; GWN. Cloud and GWN Manager,
    Grandstream’s cloud and on-premise network management platform
  • Built-in QoS allows for prioritization of network traffic.

Additional information

Weight 5.91 lbs
Dimensions 16.61 × 8.13 × 2.01 in
Brand

Grandstream

Switch Type

Managed Switches, PoE Switches

Product Family

GWN-Cloud

Layer Support

L3

Number of Ports

5-10

Main Port Speed

Gigabit

PoE Support

Yes

PoE Budget

Medium (100-199 W)

Redundant Power Supply

No

  • Model: GWN7811P
  • Box Contents:
    • 1x Switch
    • 1x 1.2m(10A) AC Cable
    • 1x 25cm Ground Cable
    • 4x Rubber Footpads
    • 1x Power Cord Anti-Trip
    • 8x Screws (KM 3*6)
    • 1x Quick Installation Guide
    • 1x Console Cable(Optional)
  • Network Protocol:
    • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
      IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p
  • Gigabit Ethernet Ports: 8
  • 10Gigabit SFP+ Ports: 2
  • Console: 1
  • Number of PoE Ports: 8
  • Link Aggregation: 5
  • External Redundant Power Supply (RPS): N/A
  • Max Output Power per PoE Port: 30W
  • Max Total PoE Output Power: 120W
  • PoE Standards: IEEE 802.3af/at
  • Auxiliary Ports: 1x Reset Pinhole
  • Forwarding Mode: Store-and-forward
  • Total non-blocking throughput: 28Gbps
  • Switching Capability: 56Gbps
  • Forwarding Rate: 41.644Mpps
  • Packet Buffer: 12MB
  • Switching:
    • 16K static, dynamic and filtering MAC addresses
    • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
    • VLAN virtual interface
    • GVRP (pending)
    • Spanning tree, 32 instances for STP/RSTP/MSTP
  • Routing:
    • Static routing
    • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
  • Multicast:
    • IGMP Snooping
    • MLD Snooping

For a full list of specifications, please refer to the product datasheet
