SKU: CYB-011411

CyberData 011411

Login to view prices

MSRP: $670.00

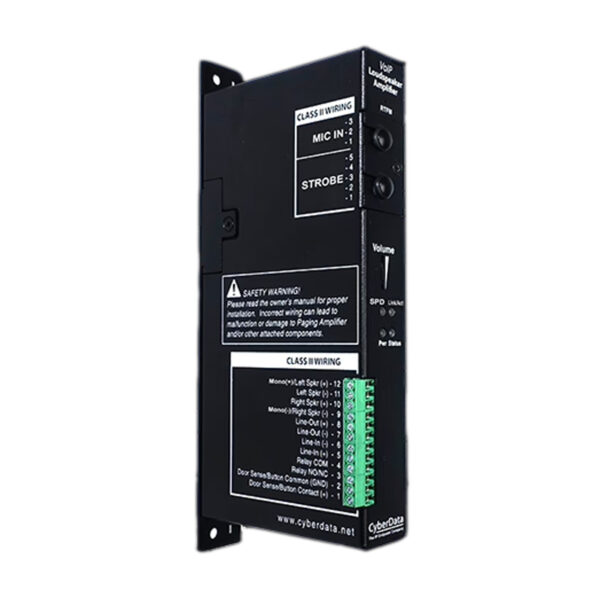

CyberData 011411 Syn-Apps Paging Amplifier

SKU: CYB-011411

You may also like…

Description

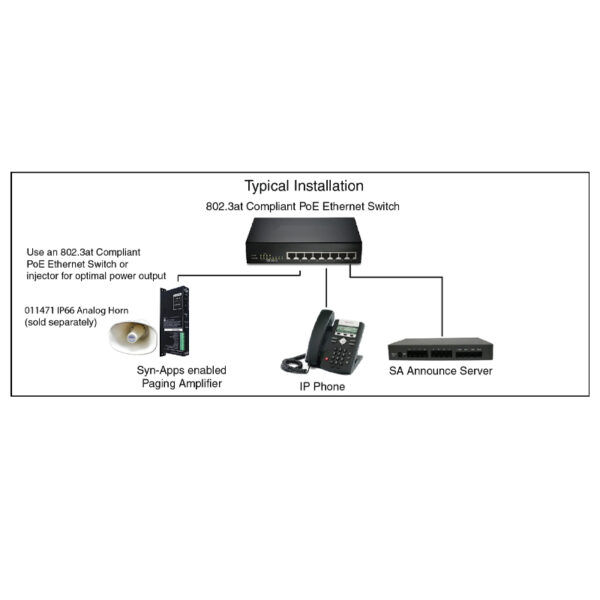

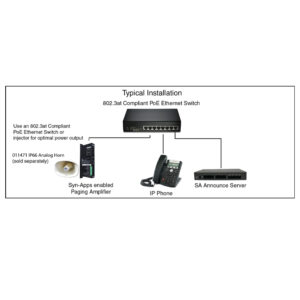

The Syn-Apps enabled Paging Amplifier is a Power over Ethernet (802.3at) VoIP paging device and loud ringer for use in places that need loud paging. It provides an easy method for implementing an IP-based overhead paging system for your existing or new VoIP Phone system. The Syn-Apps enabled Paging Amplifier can have one or two IP66 Analog Horns (011471) attached. See more details in the Operations Guide or under the Installation tab of the product webpage.

Core Features:

  • SIP Enhanced interoperability for hosted environments
  • CyberData has maintained one of the most comprehensive
    list of IP PBX servers certified to work with CyberData
  • Support for security code access for SIP paging
  • Auto provisioning via HTTPS
  • HTTPS web based configuration
  • Support for G.711 a-law, G.711u-law, G.722, and G.729 codecs
  • 802.11q VLAN tagging
  • Configurable event generation for device health and status monitoring
  • SIP and Simultaneous Multicast
  • Dual-speed ethernet 10/100 Mbps
  • PoE 802.3at-enabled
  • Line-out connector
  • DTMF controlled relay
  • Direct 8 Ohm speaker drive
  • User-uploadable tones and messages
  • Digital volume control

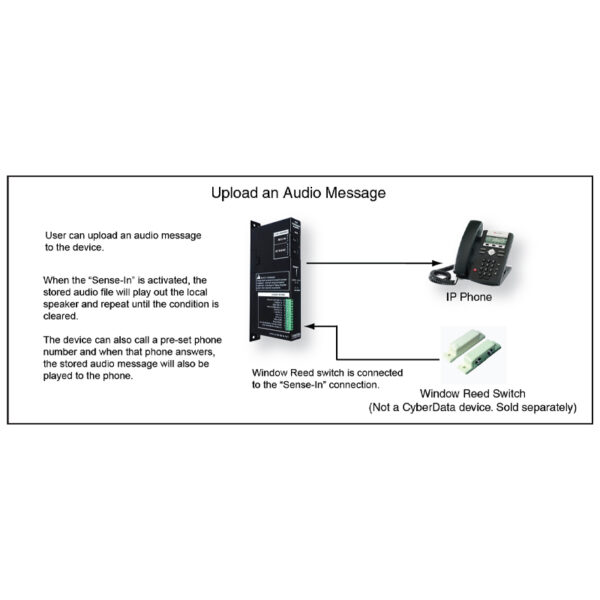

  • Auto-call voice message from input port sense

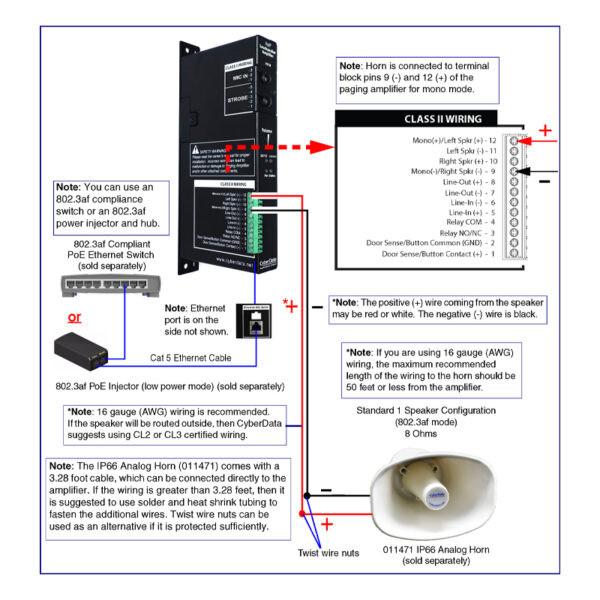

  • Can support one or two analog horns (#011471 IP66 Analog Horn sold separately)
  • HTTP Command Interface
  • 10 channel prioritized Multicast ports
  • Built-in diagnostics
  • Cisco SRST

Additional information

Weight 2 lbs
Dimensions 1 × 3.3 × 7.8 in
Brand

CyberData
Paging Unit Type

Amplifier
  • Part Number: 011411
  • Ethernet I/F 10/100 Mbps
  • Protocol SIP RFC 3261 Compatible or Syn-Apps SA-Announce
  • Power Input PoE 802.3at or 802.3af
  • Audio Output:
    • 802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz (When used with the optional 011471 horn)
    • 802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz (When used with the optional 011471 horn)
  • Line Out:
    • Output Signal Amplitudes: 2.0 VPP Maximum
    • Output Level: +2dBm nominal
    • Total Harmonic Distortion: 0.5% maximum
    • Output Impedance: 10k Ohm
  • Operating Range:
    • Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
  • Humidity:
    • 5-95%, non-condensing
  • Storage Temperature:
    • -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
  • Storage Altitude:
    • Up to 15,000 ft. (4573 m)
  • Payload Types:
    • G.711 a-law, G.711 u-law, G.722, and G.729 codecs
  • Compliance:
    • CE; EMC Directive – Class A EN 55032 & EN 55024,
    • LV Safety Directive- EN 60950-1,
    • RoHS Compliant, FCC; Part 15 Class A,
    • Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
  • Warranty: 2 Years Limited

For a full list of specifications, please refer to the product datasheet
