CyberData 011236, 2-Port Gigabit Ethernet Switch

SKU: CYB-011236

You may also like…

Description

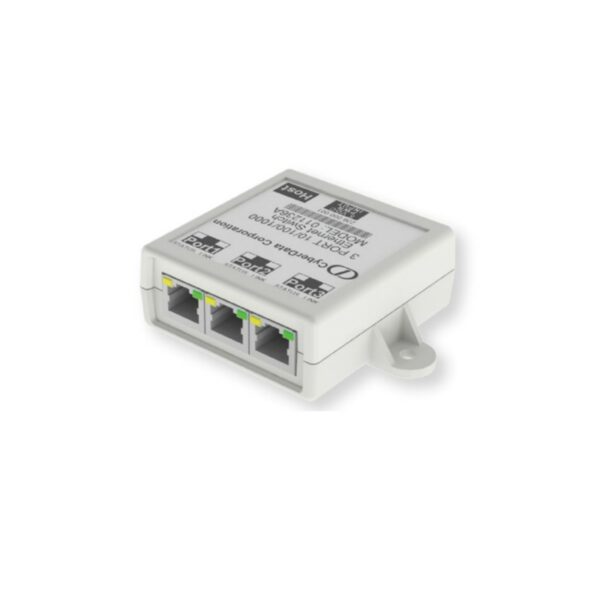

The CyberData 011236, 3-Port Gigabit Ethernet Switch enables users of a PC to split a single Gigabit Ethernet port into two Gigabit Ethernet ports. The power for the switch is supplied by the PC’s USB port.

Core Features:

  • 3-port auto-negotiating (no crossover cable required)
  • 10/100/1000 full duplex
  • USB or PS/2 mouse-powered (no external power supply required)
  • Link/Status and connection speed LEDs
  • Low power
  • VLAN Packet Forwarding
  • RoHS compliant
  • USB A to B cable included

Additional information

Weight 0.2 lbs
Dimensions 2.75 × 3.78 × 1.1 in
Brand

CyberData
Switch Type

Unmanaged Switches
Number of Ports

1-4
Main Port Speed

Gigabit
Uplink Ports

Gigabit RJ45
Layer Support

L2
PoE Support

No
Redundant Power Supply

No
  • All ports are 10/100/1000 Mbps auto sensing based upon the port’s individual connection
  • Each port has auto MDX – any port can be used as the uplink connection
  • Fully compliant to IEEE 802.3u standard
  • Automatic address learning, address aging and address migration
  • Integrated lookup engine with 1k unicast MAC addresses
  • 1.4Gbps high performance memory bandwidth

For a full list of specifications, please refer to the product datasheet
